Optimum Synchronous Timer Module 24 Hour Time Manual Override OP-FM1STUH0

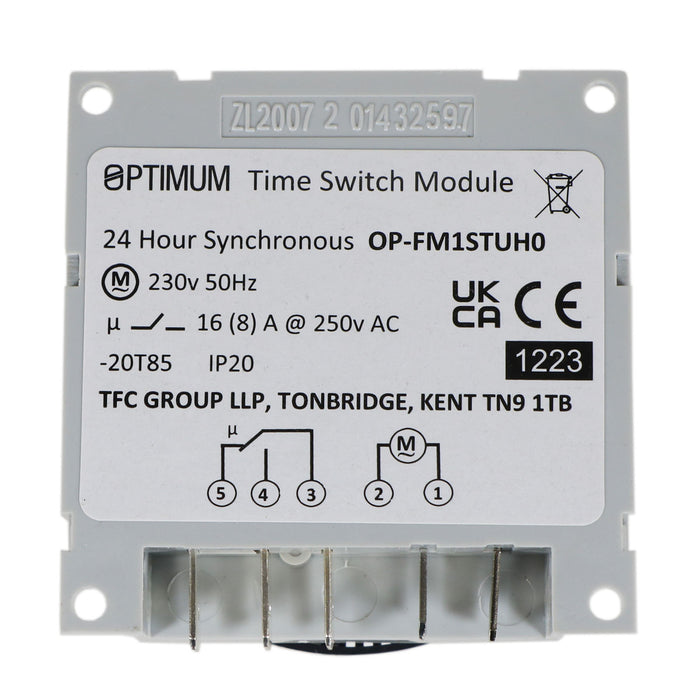

Optimum 24 Hour Synchronous Timer Module with Manual Override
Brand new, captive-tappet 24-hour time switch module. Each tappet operates for 15 minutes. The timer is suitable for sub-panel mounting. The 24 hour dial controls a volt-free changeover switch, with a resistive rating of 16 amperes
Specification:

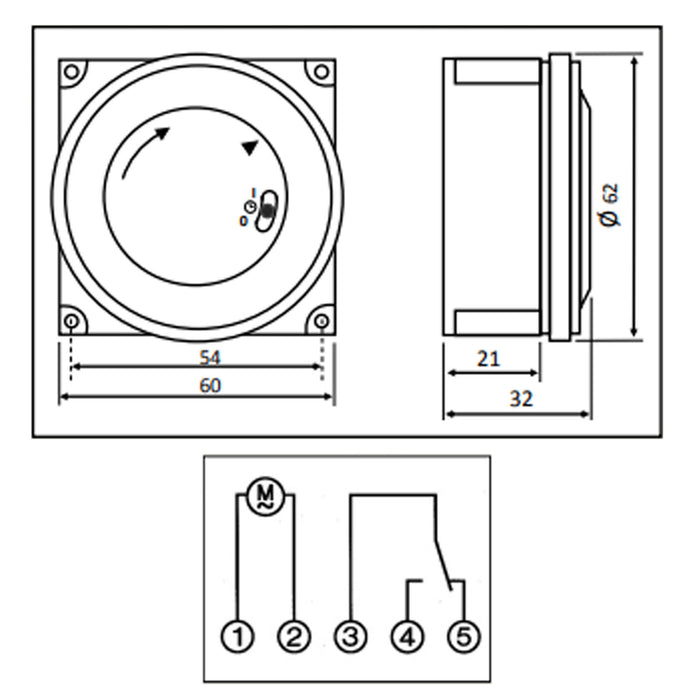

Dimensions: 60 x 60 x 32 (See Drawing Below)
Connections: 5 x Din 6.3mm Tab Terminals
Weight: 110g
Power Consumption: 1va @ 230v 50hz
Resistive Load: 16 Amperes
Inductive Load: 8 Amperes (Cos Ø 0.6)
Minimum Load: 100ma @ 20v Ac/dc
Temperature Rating: -20t85
Accuracy: Main Synchronised (Typically +/- 2.5 Sec / Day)
Minimum Switching: 15 Minutes
Manual Override: Timed, Fix on, Fix Off
