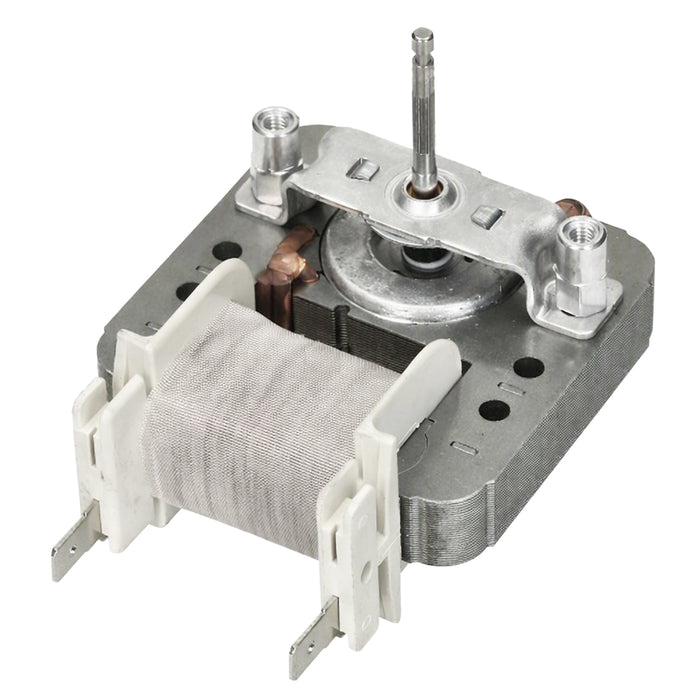

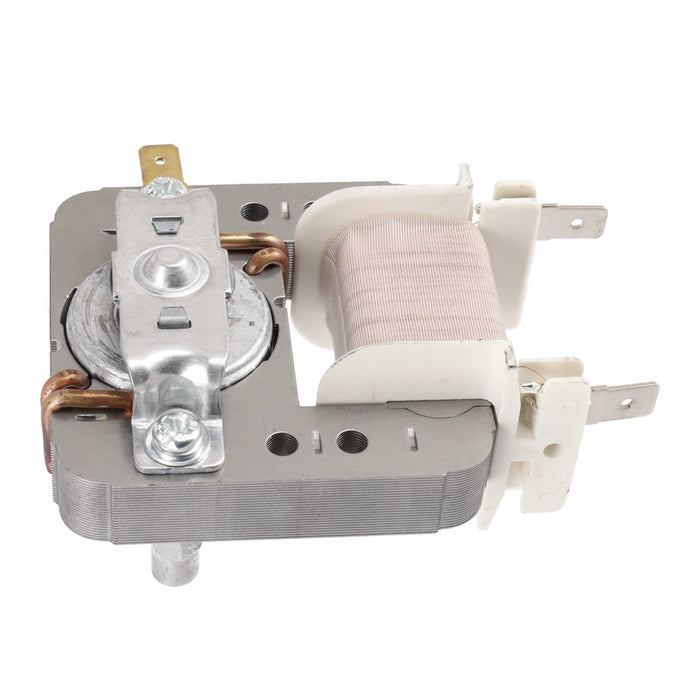

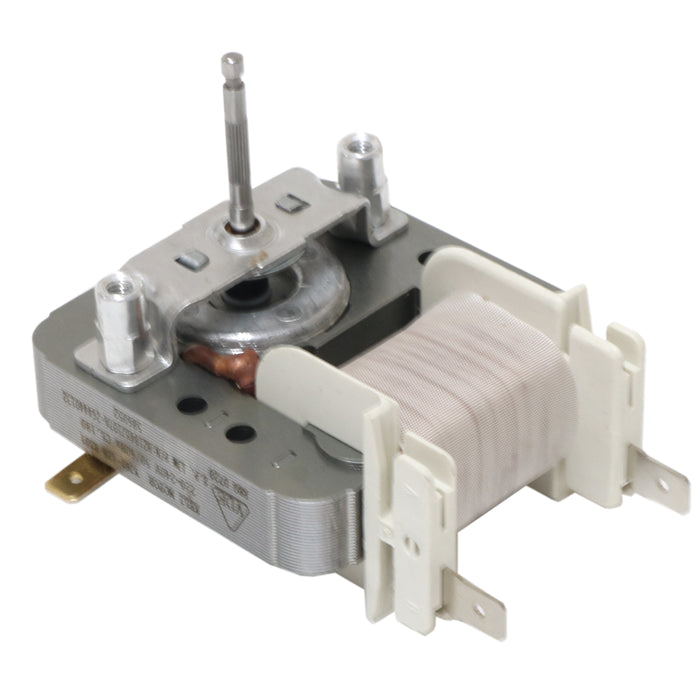

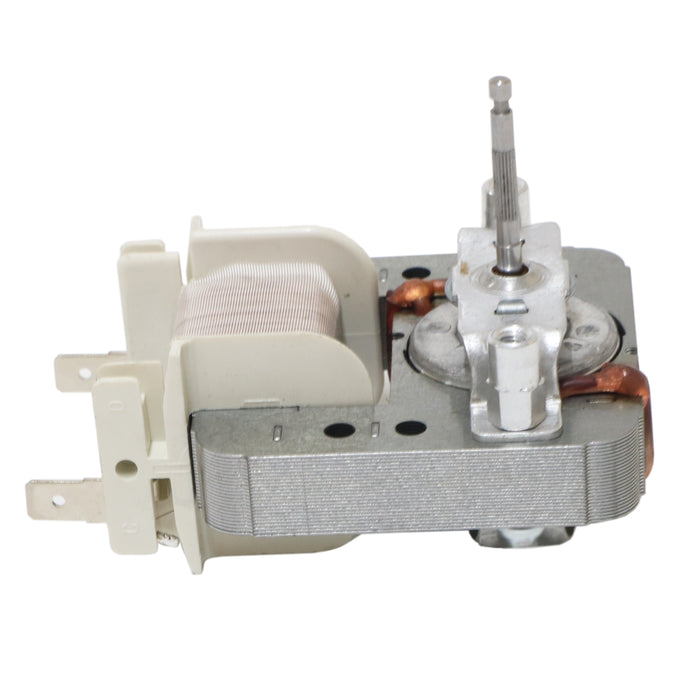

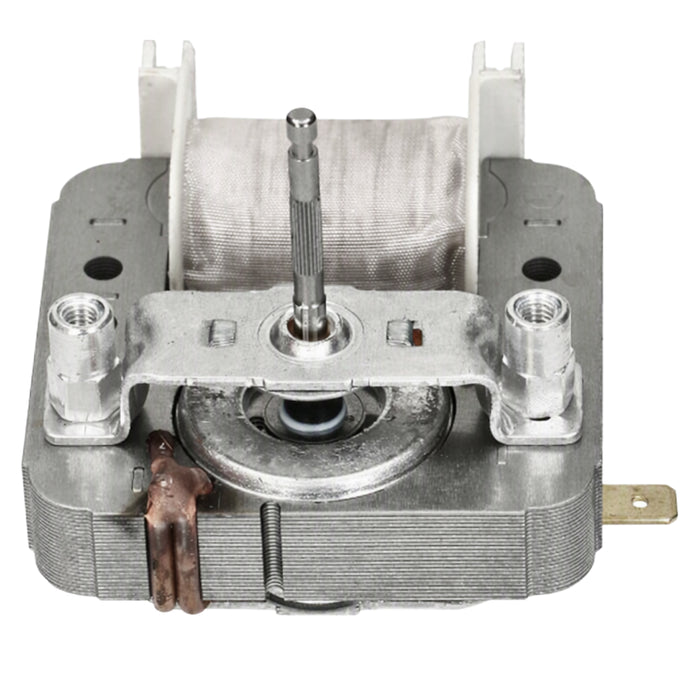

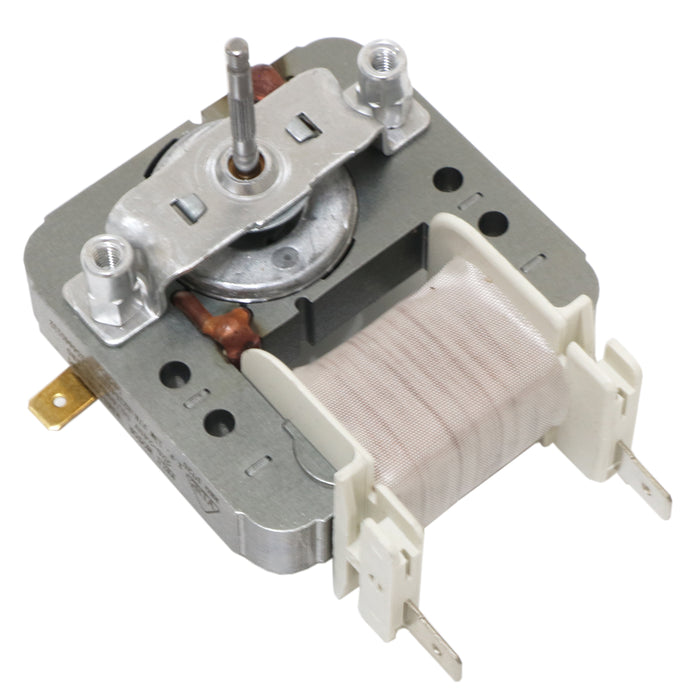

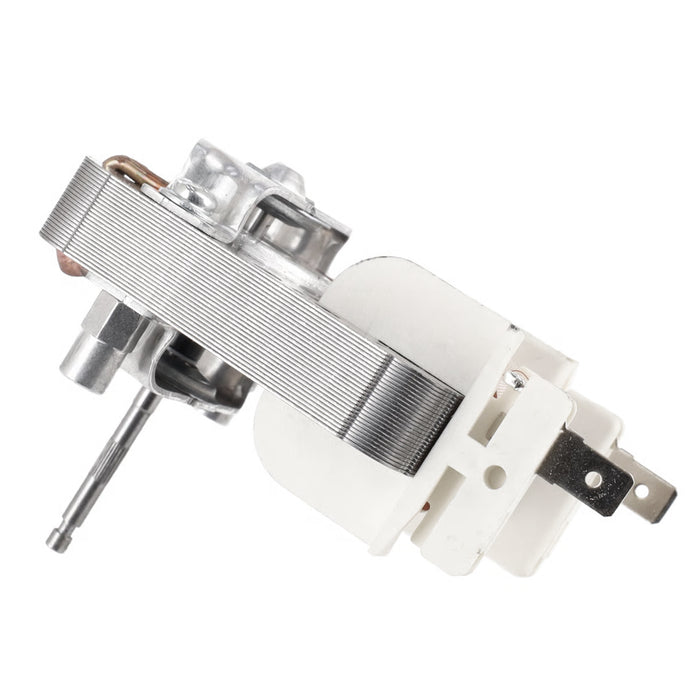

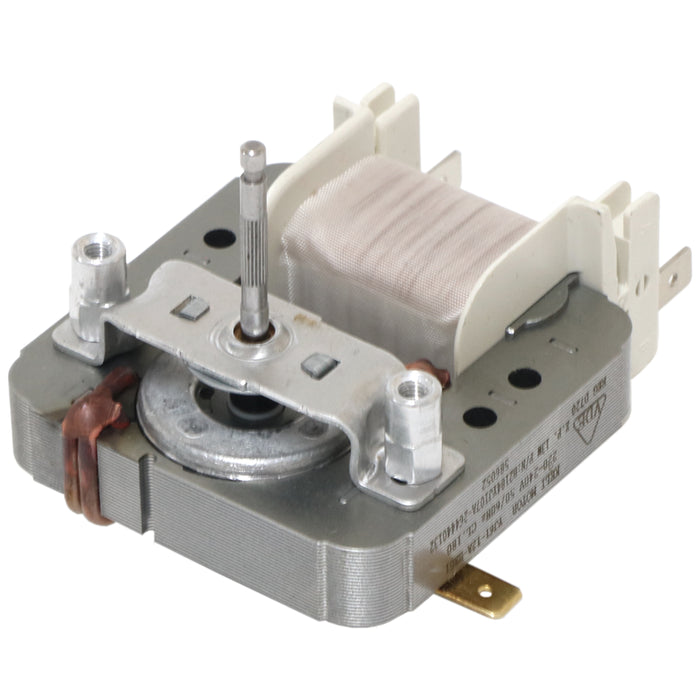

Beko Oven Cooling Fan Motor 13w 264440132 BBIE BBIM CSM BDVC Leisure Grundig
by Beko
Current price
£39.79
**Free UK Delivery (1-2 Days)**
Availability: Only 2 left in stock
Genuine 13w Cooling Fan Motor for Beko Leisure Grundig Oven
Brand new, genuine original replacement cooling fan motor for Beko, Leisure or Grundig oven. It drives the cooling fan that protects the oven’s electronics from overheating. When the oven gets hot around the control panel, cuts out, or the fan stops spinning, this is the part that usually needs replacing.
Specification:
Part Number: 264440132, C00865694
Type: Cooling / Circulation Fan Motor
Wattage: 13W
Voltage: 220–240V
Function: Drives the cooling fan to regulate temperature around the oven cavity and electronics.
Position: Rear cooling system
What This Part Is For:
This motor powers the cooling fan, which:
Prevents overheating of the control panel, wiring, and outer oven casing.
Maintains safe operating temperature during cooking.
Ensures the oven does not cut out or trip due to excess heat.
Protects internal components from long‑term heat damage.
If the cooling system fails, the oven may still heat but will overheat externally, shut off, or become unsafe. This motor is the core component that keeps that system running.
When to Replace:
Replace the cooling fan motor if you notice:
Fan not spinning even though the oven heats normally.
Oven becomes very hot around the knobs/control panel.
Oven cuts out mid‑cycle due to overheating.
Loud grinding, squealing, or bearing noise from the rear of the oven.
Smell of hot electronics or excessive heat from the outer casing.
Reviews confirm common failures include bearing problems and non‑rotation.
How to Fit:
Disconnect power: Switch off at the mains — ovens store heat and can be dangerous.
Remove the rear panel: Access the cooling fan assembly at the back of the oven.
Locate the cooling fan motor : It sits behind the oven cavity, connected to a small fan blade.
Disconnect wiring: Note wire positions or take a photo before removal.
Unscrew the motor housing: Remove the mounting screws and slide the motor out.
Transfer the fan blade: Some models reuse the existing impeller.
Install the new motor: Secure with screws and reconnect wiring.
Reassemble the rear panel: Ensure all screws are tight and panels aligned.
Test the oven: Turn the oven on — the cooling fan should start once the oven warms.
Fits models:
BEKO
9620MOI, BADF22300X, BBAIF22300X, BBIC110N0X, BBIE12100X, BBIE12100XD, BBIE12300XC, BBIE12300XD, BBIE13300XC, BBIE13300XD, BBIE13302XC, BBIE14100X, BBIE18300XCE, BBIF16100X, BBIF16300X, BBIF22100W, BBIF22100X, BBIF22300B, BBIF22300W, BBIM110N0X, BBIM113N0X, BBIM113N1X, BBIM12300XCE, BBIM12301X, BBIM12301XCE, BBIM13300CDXE, BBIM13300XDN, BBIM13300XM, BBIM13301XC, BBIM13302XCs, BBIM14300BC, BBIMA13300XC, BBIR13300XC, BBIs13300XMsE, BBIs14300XCE, BBIS25300XC, BBNIC22100X, BBNIE2300XD, BBNIF22300XD, BBQE22300X, BBQE24300B, BBQM22301XC, BBQM24301BC, BBRIC21000X, BBRIE22300XD, BBRIF22300X, BBSF210SX, BBSF211SX, BBUC110N0X, BBUM110N0X, BBUM113N0X, BBUM12340X, BBVM13400XDS, BBXIC21000X, BBXIE22300S, BBXIF22100S, BBXIF243XC, BBXIM17300DX, BCBIM16300XDE, BDC5422X, BDC6C55W, BDC6C55X, BDF22300B, BDF26300X, BDG685WP, BDM243BOC, BDQF22300X, BDQF24300B, BDV555AX, BDVC100K, BDVC100X, BDVC665MK, BDVC665W, BDVC667K, BDVC667S, BDVC667W, BDVC667X, BDVC668W, BDVC668X, BDVC674MS, BDVC675NTW, BDVC90X, BDVF100K, BDVF100X, BDVF675NTW, BDVF696XP, BDVF90X, BDVG674MK, BDVG675NTW, BDVG695X, BDVG697KP, BDVG697SP, BDVG697WP, BE10DUFK, BE10DUFS, BE10ELEK, BE10ELES, BFC 310 B, BFC 320 S, BFM 310 I, BFM 430 I, BGO5103X, BIE24100B, BIE25400XM, BIG22100X, BIG22101X, BIGT22101X, BIM16100DX0S, BIM22300X, BIM24300BS, BIM24302B, BNDF22300XD, BRDF21000X, BRDF22300X, BXDF21100X, BXDF22300M, BXDF25300X, BXDM25300X, CDF22309X, CDG62320DX, CDG62320GX, CDM62320DX, CIFY71W, CIFY81X, CIMY91X, CIMYA91B, CLEYELDOUBLE, COOK69DFK, COOK69DGK, CSE52020DX, CSE52120GX, CSE52320DX, CSE52321DX, CSE52620DX, CSE57100GX, CSE57302GX, CSE62110DX, CSE62120DX, CSE62121DX, CSE62321DX, CSE62X, CSE63110DX, CSE63111DX, CSE63320DX, CSE63X, CSE67000GX, CSE67300GX, CSE67301GX, CSE69000GW, CSE69100GS, CSE69100GW, CSE69300GA, CSE69300GW, CSE69301GA, CSE69301GW, CSE87001GX, CSG52000DX, CSG61126FDX, CSM52120DX, CSM52310DX, CSM52320DX, CSM52321DX, CSM52322DX, CSM52323DX, CSM52324DX, CSM52325DX, CSM52326DX, CSM52620DX, CSM57300GX, CSM57301GX, CSM57302GX, CSM57304GW, CSM57304GX, CSM61320DX, CSM61321DX, CSM62320DX, CSM62321DX, CSM62322DX, CSM62323DX, CSM63320DX, CSM66002GW, CSM66301GX, CSM67300GX, CSM67301GX, CSM67302GW, CSM67302GX, CSM69300GX, CSM89300GX, CSM89301GW, CSS52000DX, CSS52001DX, CSS52110DX, CSS57100GX, CSS57101GX, CSS57102GX, CSS57X, CUI60S, CUI64B, CUV62X, DBDF243WG, DBDM223X, DOQF233X, EDC633K, EDC633W, EDG6L33W, FDM62130DXMS, FSE57302GWC, FSE58100WC, FSE58300ACS, FSE58300WC, FSE63321DXCS, FSE67300XCS, FSE683001GACS, FSE68300GACS, FSE68300GWCS, FSE68301WC, FSE70GW, FSET52324DXDS, FSM51331DXDT, FSM52332DWDS, FSM89301GXS, FSR67100GXCS, GGR 15121 FX, KDC653K, KDC653S, KDC653W, KDDF653W, KDG653K, KDG653S, KDG653W, KDVC100K, KDVC100X, KDVC90K, KDVC90X, KDVF100K, KDVF90K, KDVF90X, MCSE58303GW, MCSE58303GX, ODF21300B, ODF21300W, ODF22300X, ODF22309X, ODF24300M, OIG22100X, OIG22101X, OIG22102X, OIG22103XM, OIG24101B, OIG24101W, OIGR21101W, OIGR22101X, OIM27200A, OIM27200AV, OIM27201C, QBSE222X, QBSE223SX, QDM246B, XDC653K, XDC653W, XDC663SM, XDC6NT54K, XDC6NT54W, XDCS663MT, XDDF655S, XDDF655T, XDG621K, XDVG674MT, XDVG675NTS, XDVG675NTW, XDVG675SM, XTC653S, XTC653W, XTG653K, XTG653W
GRUNDIG
GEBD19300B, GEBM12300B, GEBM19300XC, GEDM47000B, GFZM13510W
LEISURE
AL100F210K, AL60CRC, AL60CRK, AL60GAC, AL60GAK, AL61GAC, AL61GAK, AL90F230B, AL90F230C, AL90F230K, CC100F521C, CC100F521K, CC100F521S, CC100F521T, CC90F531C, CC90F531K, CC90F531S, CK100C210C, CK100C210K, CK100C210R, CK100C210S, CK100C210X, CK100F232B, CK100F232C, CK100F232K, CK100F232R, CK100F232S, CK100F232X, CK100F320KG, CK100F320XG, CK100F324C, CK100F324K, CK100F324R, CK100F324X, CK100F332K, CK110F232C, CK110F232K, CK110F232R, CK110F232S, CK110F324X, CK110F332K, CK110F332K NL, CK60CRK, CK60CVC, CK60DFK, CK60GAC, CK60GAK, CK90C230C, CK90C230K, CK90C230S, CK90F232B, CK90F232C, CK90F232K, CK90F232R, CK90F232S, CK90F320KG, CK90F320XG, CK90F322C, CK90F322K, CK90F324C, CK90F324K, CK90F324R, CK90G232C, CK90G232K, CLA60CEC, CLA60CEK, CLA60GAC, CLA60GAK, CM110B, CM110X, CS100C510K, CS100C510X, CS100F520K, CS100F520X, CS100FMIRK, CS100FMIRX, CS60CRK, CS60CRX, CS60F240X, CS60GAK, CS60GVK, CS90C530K, CS90C530X, CS90F320K, CS90F320X, CS90F530K, CS90F530X, CS90FMIRK, CS90FMIRX, CTGR6CVK, GRB6CVC, GRB6CVK, GRB6CVR, GRB6CVW, GRB6FVK, GRB6GVC, GRB6GVK, GRB6GVR, LEVC67X, LGV68W, PODM52300X, PODM54300, PR100F232T, PR90F560K, PR90F560X

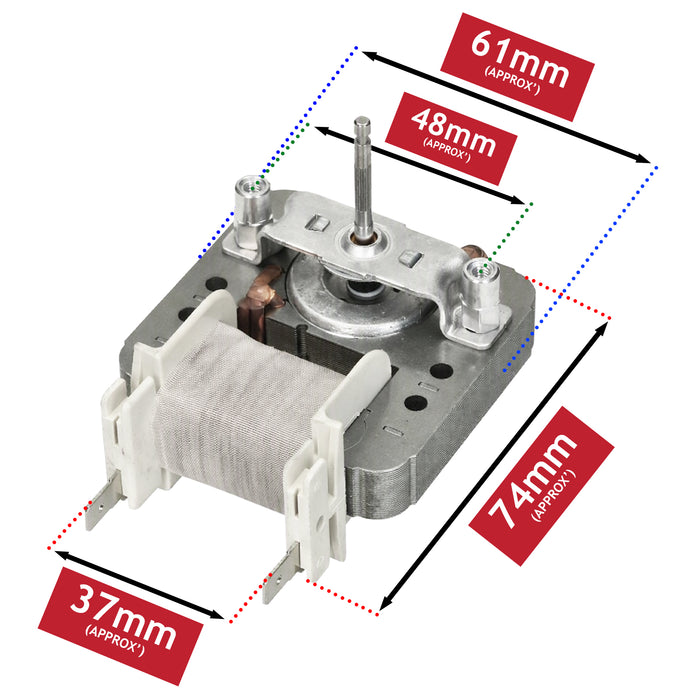

***Please note: all dimensions indicated in this ad are approximate and may vary slightly from indicated measurements. They are included as a guide to assist you in selecting the right part for your machine***
