Indesit Upper Grill Heating Element 1500w C00480881 Whirlpool Hotpoint-Ariston
by Whirlpool
Current price
£23.79
**Free UK Delivery (1-2 Days)**
Availability: Only 4 left in stock
Genuine Upper Grill Heating Element for Whirlpool / Indesit / Ariston (1500w)
Brand new, genuine original replacement upper grill element for Ariston, Bauknecht, Hotpoint, Indesit or Whirlpool cookers. If your grill is not heating, browning unevenly, or showing visible burn marks, replacing this element returns your oven to proper cooking performance.
Specification:
Equivalent Part Numbers: C00480881 / C00517600 / 481011035379
Power: 1500w
Voltage: 230v
Type: Upper Heating Element

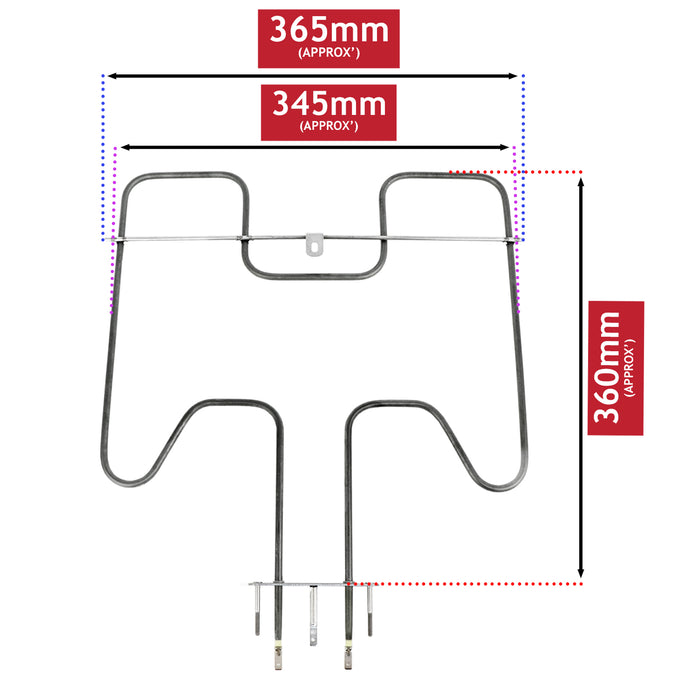

Crossbar: 365mm (Approx')
Width: 345mm (Approx')
Height: 360mm (Approx')

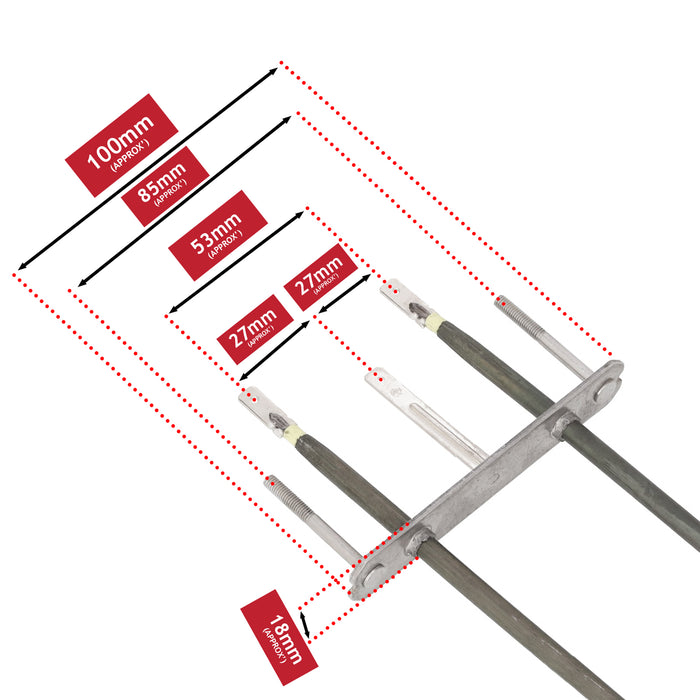

Bracket Length: 100mm (Approx')
Bracket Width: 18mm (Approx')
Distance Between Screws: 85mm (Approx')
Distance Between Tags (Outer): 53mm (Approx')
Distance Between Tags (Inner): 27mm (Approx')
When to fix:
Grill not heating or staying cold
Uneven browning or only part of the grill glowing
Burn marks, blistering or visible breaks on the element
Burning smell from the top of the oven
Grill tripping electrics when switched on
How to fit:
Isolate power – switch off and unplug the oven.
Access the element – remove the top panel or internal screws depending on model.
Lower the element carefully once screws are removed.
Note wiring positions before disconnecting.
Install the new element and reconnect wiring securely.
Refit panels and test the grill.
Fits models:
ARISTON
FA2 834 H IX A AUS, FA3 530 H BL A, FA3 530 H BLAUS, FA3 530 H IX A, FA3 530 H IX A CN, FA3 530 H WH A, FA3 834 H IX A AUS, FA5 834 H IX A AUS
BAUKNECHT
BAK3 NN8F IN, BAK3 NN8F IN1, BAK3 NN8F IN1 CH, BAR2 KN5V IN, BAR2 KN5V2 IN
HOTPOINT
HO 235H X UK
HOTPOINT-ARISTON
2AF 530 H IX HA, 2AF 534 H IX HA, 3AF 534 H IX HA, FA 5534 IX, FA 55Y4 IX, FA2 530 H BL HA, FA2 530 H IX HA, FA2 530 H WH HA, FA3 230 H BL HA, FA3 230 H IX HA, FA3 230 H WH HA, FA3 530 H BL HA, FA3 530 H IX HA, FA3 530 H WH HA, FA4 834 H IX HA, FA5 831 H IX HA, FA5 834 H IX HA, HAO 235H X, HAO 435H B, HAO 435H X, HAO3 K35H B, HAO3 K35H X, HAO3 K38HU X
INDESIT
DFW 5530 IX UK, DFW 5530 IX UK, IFW 3534 H IX, IFW 4534 H BL, IFW 4534 H GR, IFW 4534 H TD, IFW 4534 H WH, IFW 5230 IX, IFW 5530 IX, IFW 55Y4 IX, IFW 5834 IX, IFW 6220 BL, IFW 6220 IX, IFW 6230 BL, IFW 6230 IX, IFW 6230 IX UK, IFW 6230 WH UK, IFW 6230 WH.1, IFW 6530 BL, IFW 6530 IX, IFW 6530 IX UK, IFW 6530 WH, IFW 65Y0 IX, IFW 65Y0 IX UK, IFW 65Y0 J BL, IFW 65Y0 J IX, IFW 6834 BL, IFW 6834 IX, IFW 6834 WH, IFW3534HIXAUS, IO 232H B UK, IO 232H W, IO 232H X, IO 232H X UK, IO 2350H X, IO 2351H X, IO 235H B, IO K32H X, IO K350H B, IO K351H B, IO K35H TD, IO K35H W, IO K35H X, IO K38H X, IOAN1 3CN0 IX, KFW 3543 H IX UK
IGNIS
AKB 20102 IX, NFW 830 H IX
WHIRLPOOL
AKP 603 IX, AKP 604 IX, AKP 605 IX, AKP3534HIXAUS, OMK38HU0B, OMK38HU0X, OMR35HR0B, OMR35HR0X, W4 OMK38HU0BA, W4 OMK38HU0XA, WOB71AS
***Please note: all dimensions indicated in this ad are approximate and may vary slightly from indicated measurements. They are included as a guide to assist you in selecting the right part for your machine***
