Indesit Washing Machine Heating Element 1200w C00289764 IWDC IWDD IWDE XWDE XWDA
by Indesit
Current price
£23.79
**Free UK Delivery (1-2 Days)**
Availability: Only 2 left in stock

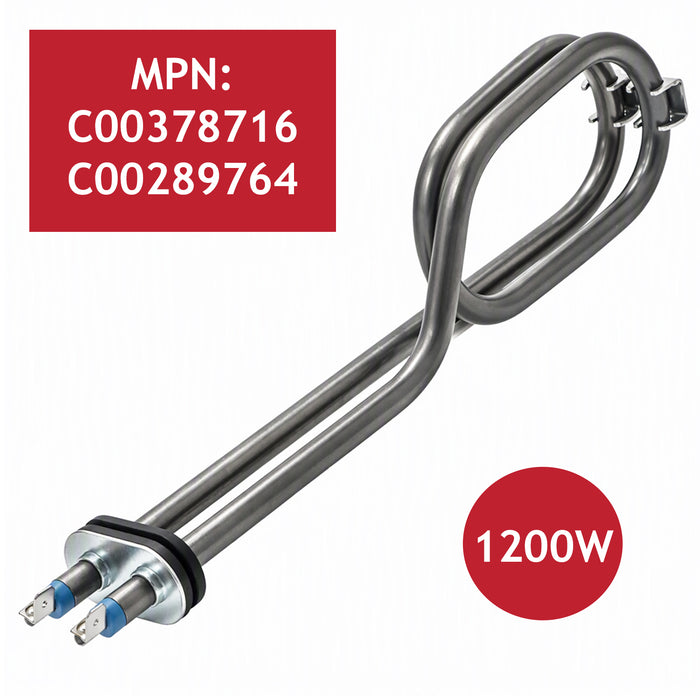

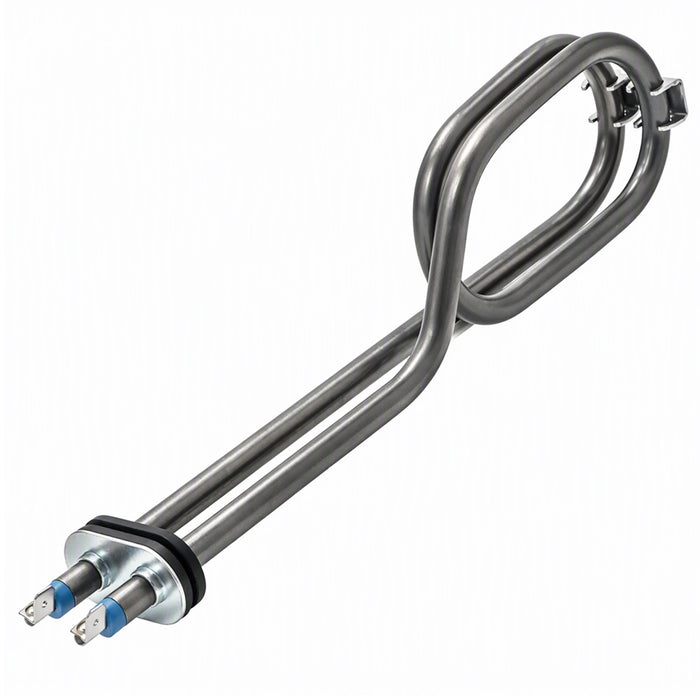

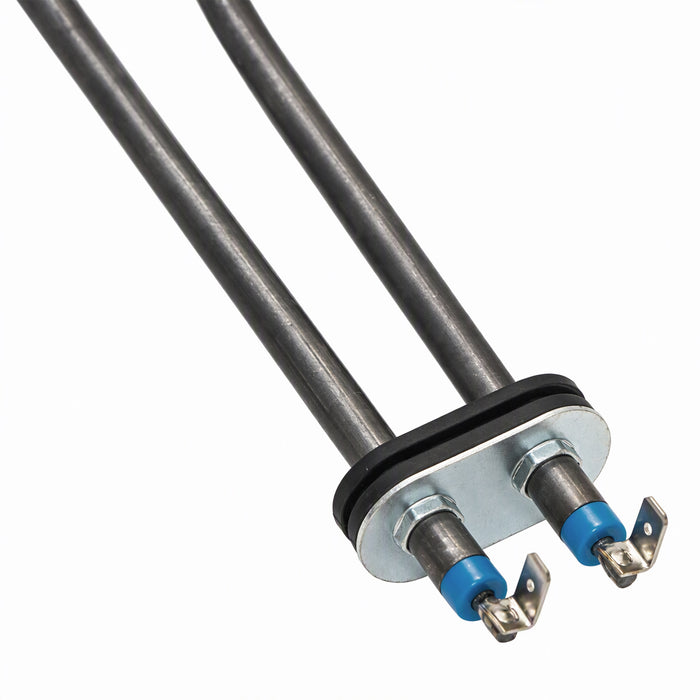

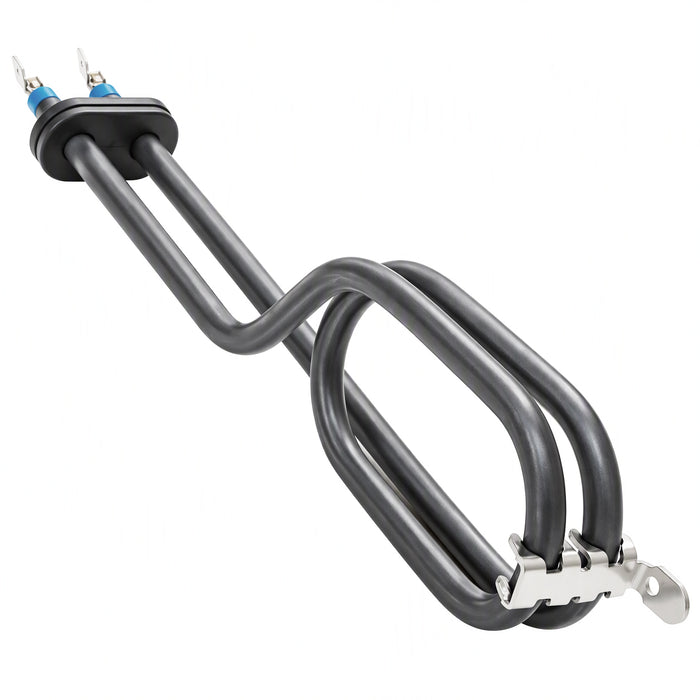

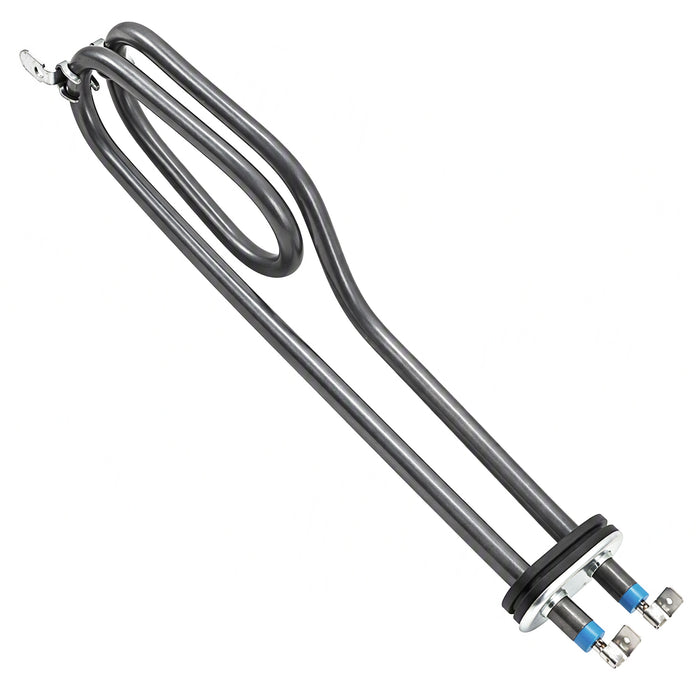

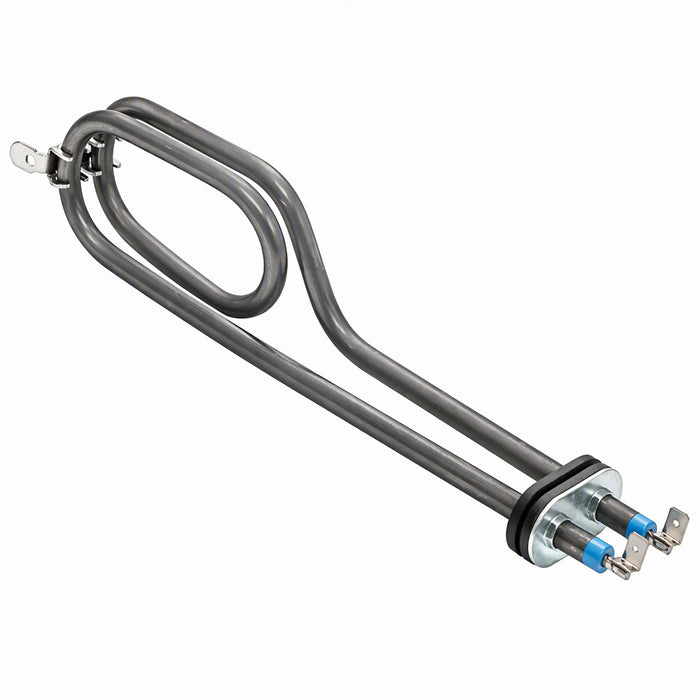

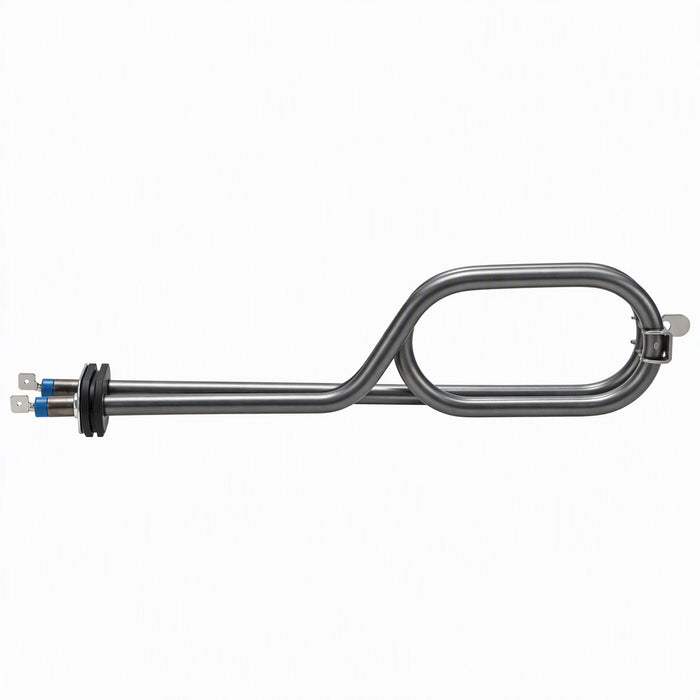

Genuine Heating Element for Indesit Washing Machine / Washer Dryer (1200W)
Brand new, genuine original replacement heating element for Indesit washing machine. Restore your washer dryer's drying performance with this heating element. Rated at 1200W, this element heats the airflow during the drying cycle, helping clothes dry efficiently and evenly.
Specification:
Part Numbers: C00289764, C00378716, C00382769, C00255444, C00268332, 488000378716, 482000088684, 482000090232
Type: Heating Element
Voltage: 230V
Power: 1200W

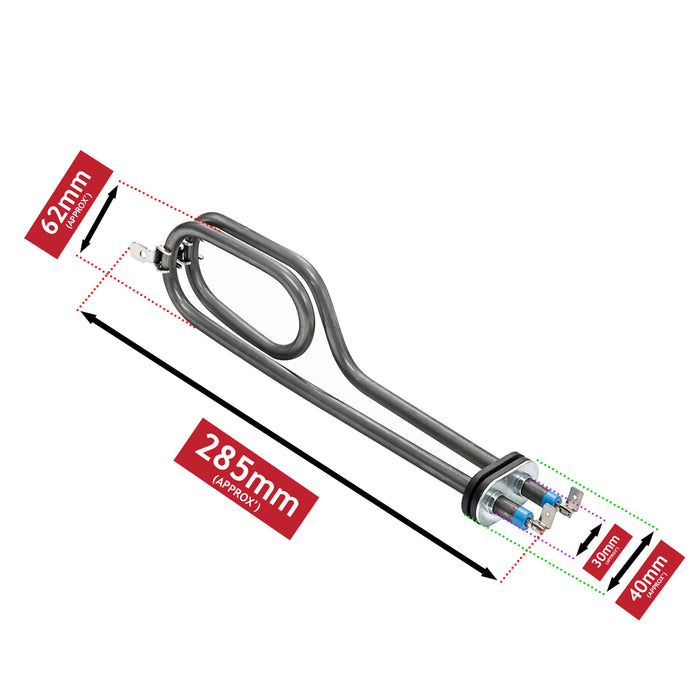

Length: 285mm (Approx')
Height: 62mm (Approx')
Bracket: 40mm (Approx')
Tags: 30mm (Approx')
When Should It Be Replaced:
Typical symptoms of a failed heater include:
Clothes remain damp after drying cycle.
Drying cycle runs but produces no heat.
Drying takes much longer than normal.
Laundry comes out cold.
Heater tests open-circuit with a multimeter.
Certain drying-related fault codes may appear (after other causes have been ruled out).
How to Fit:
Unplug appliance.
Pull machine forward for access.
Remove rear or top panel (varies by model).
Locate drying heater duct assembly.
Photograph wiring connections.
Disconnect heater terminals.
Remove retaining screws/bracket.
Withdraw old heater.
Install new heater in identical orientation.
Refit retaining bracket.
Reconnect wiring.
Reassemble appliance.
Run a short drying cycle and confirm heat production.
Fits models:
INDESIT
BDA 761483X W EE N, BDA 761483X WS DE N, BDA 76435 9W EE, BDBE851482XWFR N, BDE 1071482X WK EU N, BDE 1071482X WK IT N, BDE 1071682X W UK N, BDE 1071682X WS EE N, BDE 107426 WK IT, BDE 107436 WKV EE, BDE 107436 WKV FR, BDE 107436 WSV SPT, BDE 107436 WV UK, BDE 107448 WKV FR, BDE 107624 8WS EE, BDE 107625X W UK N, BDE 761483X W SPT N, BDE 761483X WK IT N, BDE 761483X WS EE N, BDE 764 SSV GCC, BDE 764 WV GCC, BDE 76435 9W FR, BDE 76435 9W SPT, BDE 76435 9WS EE, BDE 76435 WSV EE, BDE 76435 WV FR, BDE 861483X K UK N, BDE 861483X S UK N, BDE 861483X W UK N, BDE 861483X WK IT N, BDE 861483X WS EU N, BDE 861483X WS SPT N, BDE 86435 9EWS EU, BDE 86435 9W FR, BDE 86435 9WS SPT, BDE 86435 BKV FR, BDE 86435 WV FR, BDE 86436 WSV EE, BDE 86436 WV UK, BDE 86436X B UK N, BDE 86436X S UK N, BDE 86436X W UK N, BDE 961483X W UK N, BDE 961483X WK IT N, BDE 961483X WK SPT N, BDE 961483X WS EU N, BDE 961483X WS SPT N, BDE 964 SSV GCC, BDE 964 WSV GCC, BDE 96435 9EWB BE, BDE 96435 9EWS EU, BDE 96435 9WB FR, BDE 96435 9WB SPT, BDE 96435 EWKV BE, BDE 96435 WKV FR, BDE 96435 WKV SPT, BDE 96436 9WS SPT, BDE 96436 EWSV EE, BDE 96436 KV UK, BDE 96436 SV UK, BDE 96436 WK IT, BDE 96436 WKV IT, BDE 96436 WKV UK, BDE 96436 WSV SPT, BDE 96436 WV UK, BDE 96436X W UK N, BDE761483XWFR N, BDE761682XKFR N, BDE761682XWFR N, BDE861483XWFR N, BDE961483XWKFR N, BDEBE 961483X WK N, BI WDIL 7125 UK, BI WDIL 75125 EU, BI WDIL 75125 MEA, BI WDIL 75125 UK N, BI WDIL 751251 EU N, BI WDIL 75145 EU, BI WDIL 75148 UK, BI WDIL 861284 EU, BI WDIL 861284 UK, BI WDIL 861484 EU, BI WDIL 861485 EU, BI WDIL 861485 UK, EWDC 6105 W IT, EWDC 6145 S FR, EWDC 6145 W DE, EWDC 6145 W FR, EWDC 7125 CIS, EWDC 7145 S FR, EWDC 7168 W FR, EWDC651251WFR N, EWDD 7125 W EU, EWDD 7125 W IT, EWDD 7145 W DE, EWDD 7145 W EU, EWDD 7145 W EU/1, EWDD 7145 W FR, EWDE 7125 S UK, EWDE 71280 W EU, EWDE 7145 W UK, EWDE 71680 W DE, EWDE 71680 W TW, EWDE 751251 W SPT N, EWDE 751280 W IL, EWDE 751451 W EU N, EWDE 751680 W TW, EWDE 7528 W EU, EWDE 761483 W DE N, EWDE 761483 W UK, EWDE 761483 WS EE N, EWDE 861483 S UK, EWDE 861483 W IT N, EWDE 861483 W UK, EWDE751251WFR N, EWDE761483WFR N, EWDEP751451FR N, IWDC 6105 (DE), IWDC 6105 (EU), IWDC 6105 (UK), IWDC 61057 (RU), IWDC 6125 (DE), IWDC 6125 (FR), IWDC 6125 (IT), IWDC 6125 (UK), IWDC 6125 C ECO (IT), IWDC 6125 K FR, IWDC 6125 S (FR), IWDC 6125 S (UK), IWDC 6143 (UK), IWDC 6145 (EU), IWDC 65125 S UK N, IWDC 65125 UK N, IWDC 7085 (EX), IWDC 7085 (KW), IWDC 7085 B (AG), IWDC 7105 (EX), IWDC 7105 S (EX)60HZ, IWDC 7125 B (AUS), IWDC 7125 B (AUS) 1, IWDC 7125 S (EX), IWDC 7125BC ECO(KSA), IWDC 7145 (DE), IWDC 7145 (FR), IWDC 7145/1 S NA, IWDC 71680 (FR), IWDC 71680 ECO (EU), IWDD 6105 B ECO UK, IWDD 6145 (FR), IWDD 7123 (UK), IWDD 7123 S (UK), IWDD 7125 B (DE), IWDD 7143 (UK), IWDD 7143 S (UK), IWDD 7145 B (DE), IWDD 75125 UK N, IWDD 75145 S UK N, IWDD 75145 UK N, IWDD7125 BS C ECO IT, IWDE 12 (EX), IWDE 12 (UK), IWDE 126 (UK), IWDE 127 EU, IWDE 146 UK, IWDE 6105 B (EU), IWDE 7105 B (EU), IWDE 7125 B (EU), IWDE 7125 B (EX), IWDE 7125 B (UK), IWDE 7125 B ECO (EX), IWDE 7125 S (UK), IWDE 71257 B (RU), IWDE 7145 B (EU), IWDE 7145 B (UK), IWDE 7145 K (UK), IWDE 7145 S (UK), IWDE 7168 (UK), IWDE 71680 C ECO IT, IWDE 71680 ECO (DE), MIDK 6505 CIS, MWDA 75128 WK CIS, PWDC 7125 W (EU), PWDC 7142 W (UK), PWDC 7143 W (UK), PWDE 7124 S (IT), PWDE 7125 (IT), PWDE 7125 S (EU), PWDE 7125 W (EU), PWDE 71257 S (RU), PWDE 71273 W (IT), PWDE 7145 W (EU), PWDE 7145 W (FR), PWDE 7148 W (EU), WDA 1400 E (EU), WDA 71400 (EU), WDA 7514 (EU), WDA 8614, WIDXE 126 (DE), WIDXE 146 (DE), WIDXE 146 (UK), WIDXE 146 S (UK), WIDXL 102 (UK), WIDXL 106 (EX), WIDXL 106 (EXP), WIDXL 106 (EXP) 60HZ, WIDXL 126 (AUSP), WIDXL 126 (CH), WIDXL 126 (DE), WIDXL 126 (UK), WIDXL 126 S (DE), WIDXL 126 S (EX), WIDXL 126 S (UK), WIDXL 146 (DE), WIDXL 146 (EU), WIDXL 146 (FR), WIDXL 146 (UK), WIDXL 146 S (FR), WIDXL 86 (AGP), WIDXL 86 (EX), WIDXL 86 (EXP), WIDXXL 106 (EU).C, WIDXXL 126 (EU).C, WIDXXL 146 (EU).C, XWDA 751280X WKKK IT, XWDA 75128X S UK, XWDA 75128X W UK, XWDA 75128X WKKK CIS, XWDA 751480X W FR, XWDA 751480X W FR.1, XWDA 751480X W UK, XWDA 751480X WSSS EU, XWDA 751480X WWWG EU, XWDA 751680X W BY, XWDA 751680X W DE, XWDA 751680X W EU, XWDA 751680X W UK, XWDA75128XSU, XWDA75128XWU, XWDA751480XW, XWDA751680XW, XWDE 1071481XWKKK EU, XWDE 1071681X W UK, XWDE 75128X WKKK CIS, XWDE 751480X K UK, XWDE 751480X S UK, XWDE 751480X W UK, XWDE 751680X K FR, XWDE 751680X W FR, XWDE 861280X WKKK IT, XWDE 8612X AUS.1, XWDE 861480X S FR, XWDE 861480X S PL, XWDE 861480X S UK, XWDE 861480X W DE, XWDE 861480X W EU, XWDE 861480X W FR, XWDE 861480X W UK, XWDE 861480X WSSS EU, XWDE 861480X WWGG EU, XWDE 861680X W UK, XWDE 961480X S EX, XWDE 961480X S GCC, XWDE 961480X W FR, XWDE 961480X WKKC EU, XWDE 961480X WKKC IL, XWDE 961480X WKKK IT, XWDE 961480X WKKK UK, XWDE 961480X WSSS EU, XWDE 961480XWS EX 60, XWDE 961480XWSSS GCC, XWDE751480XK, XWDE751480XS, XWDE751480XW, XWDE861680XW, XWDE961480XWS EX60HZ, XWDE961680XW, XWDEBE 961480X WKKK
***Please note: all dimensions indicated in this ad are approximate and may vary slightly from indicated measurements. They are included as a guide to assist you in selecting the right part for your machine***
