Integrated Door Hinge Magnetic Fixing Kit for Kenwood KIW814W23 KIW914W23 Washing Machine (20 Pieces)

Built In Cupboard Door Hinge Fixing Kit for Kenwood Integrated Washing Machines (20 Pieces)

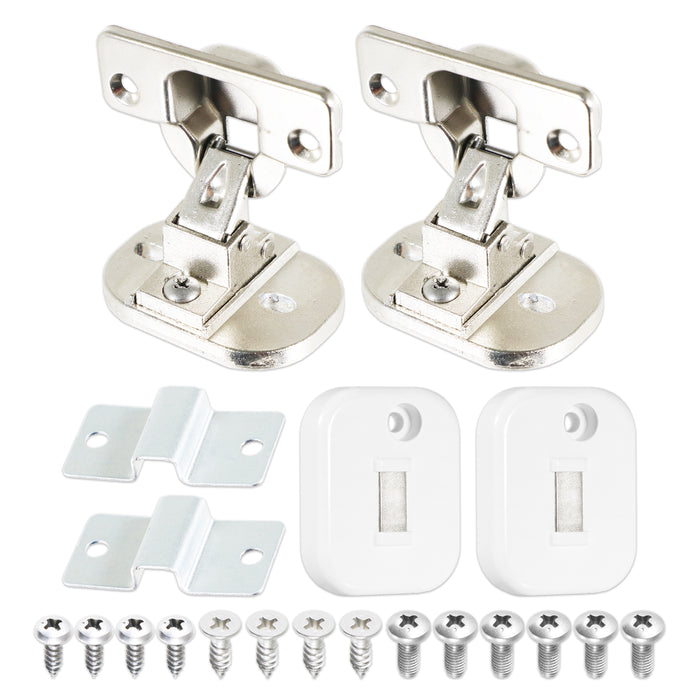

Kit Contains:
2 x Hinges
2 x Magnetic Brackets
2 x Door Brackets
6 x 15mm Round Bolts
4 x 15mm Flat Screws
4 x 15mm Round Screws

Brand new, premium quality door hinge fixing kit for Kenwood integrated washing machines. This kit contains all necessary components for installation and features magnetic brackets to keep the cupboard door firmly closed when not in use.

Fits Models:

For KENWOOD

KIW814W23
KIW914W23

Specifications:

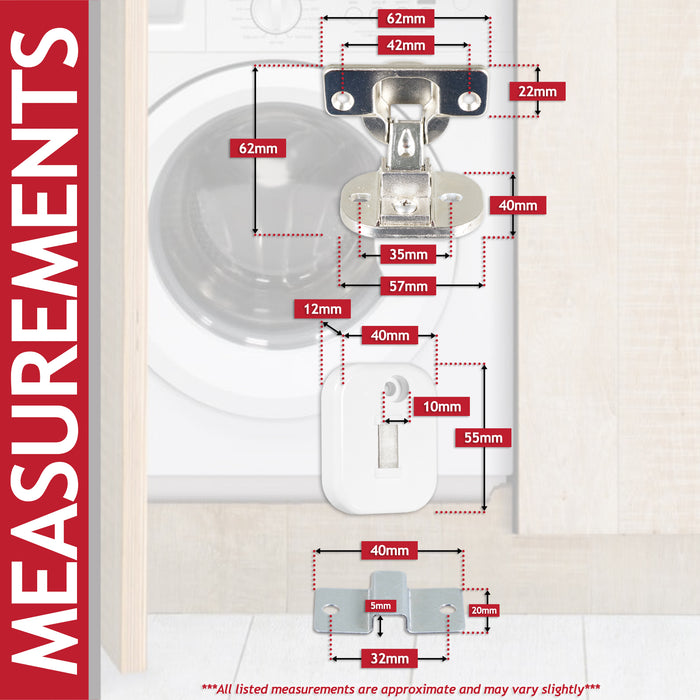

***Please see images for detailed illustration of measurements listed below***
Hinge Size: 62mm (Fully Opened)
Hinge Bracket End Width: 62mm
Hinge Bracket End Central Hole Spacing: 42mm
Hinge Bracket End Depth: 22mm
Hinge Base End Width: 57mm
Hinge Base End Central Hole Spacing: 35mm
Hinge Base End Depth: 40mm
Magnetic Bracket Length: 55mm
Magnetic Bracket Width: 40mm
Magnetic Bracket Height: 12mm
Magnetic Bracket Hole: 10mm
Door Bracket Width: 40mm
Door Bracket Central Hole Spacing: 32mm
Door Bracket Depth: 20mm
Door Bracket Height: 5mm
Material: Steel
Colour: Silver

Product Features:

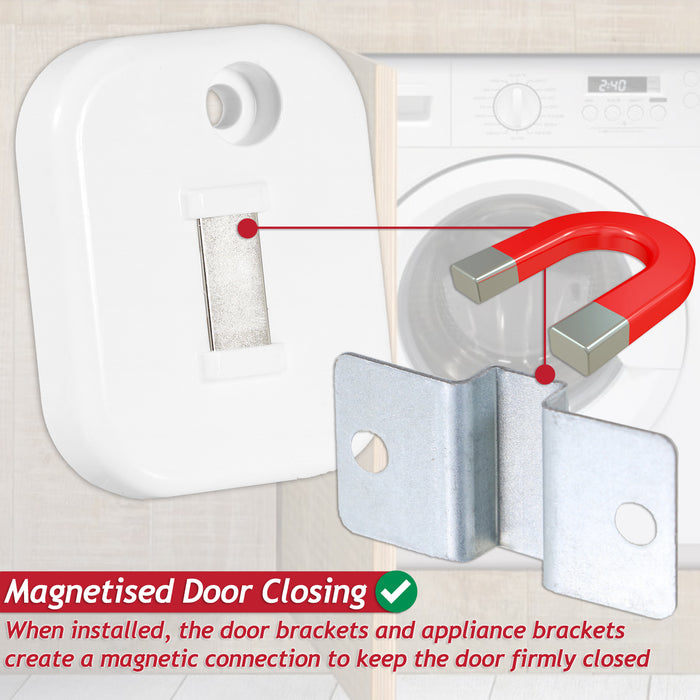

Door and appliance brackets create a magnetic connection for firm closing
Includes all fixings required for installation
Powder coated for corrosion resistance and easy cleaning
Reinforced strong and durable hinge for optimal operation and performance

This product is designed to be compatible with the specified brand(s) and is not the original part. The name, model names and any part numbers of the original manufacturer(s) have been used for reference purposes only and are in no way associated with the original parts or manufacturer.
