Low Water Pressure Sensor Switch for Ideal Keston Logic Combi Boiler (505.91512 / 175596)

Replacement Low Water Pressure Sensor Switch for Ideal Boilers (175596)

Brand new, premium quality replacement low water pressure sensor switch for Ideal boilers. A crucial safety device designed to monitor the water pressure within the boiler system, this switch helps prevent damage (low water pressure can cause the boiler to overheat, leading to potential damage to the system), prevents dangerous situations and triggers automatic shutdown when low water pressure is detected - preventing further operation and damage.

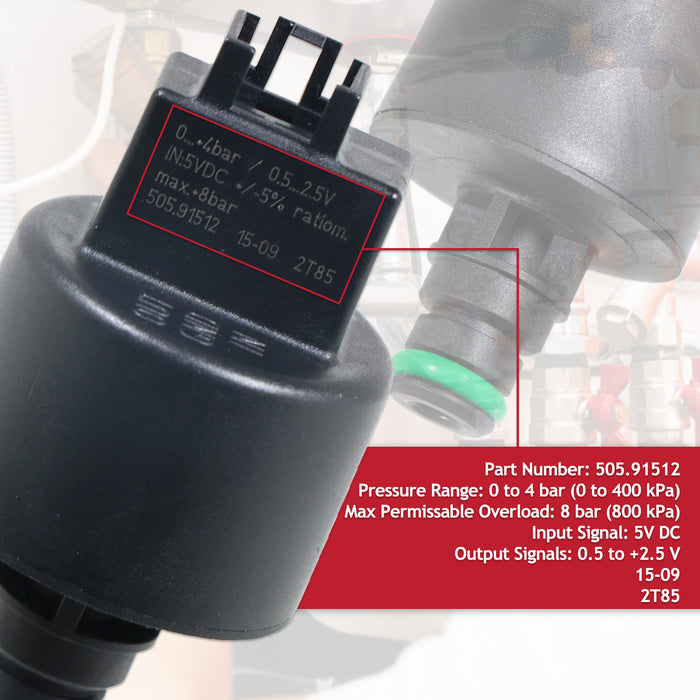

Specifications:
Part Number: 505.91512
Equivalent Part Number: 175596
Pressure Range: 0 to 4 bar (0 to 400 kPa)
Maximum Permissable Overload: 8 bar (800 kPa)
Input Signal: 5V DC
Output Signals: 0.5 to +2.5 V
15-09
2T85
Length: 68mm
Width: 35mm
***Please see images for precise and detailed measurements***

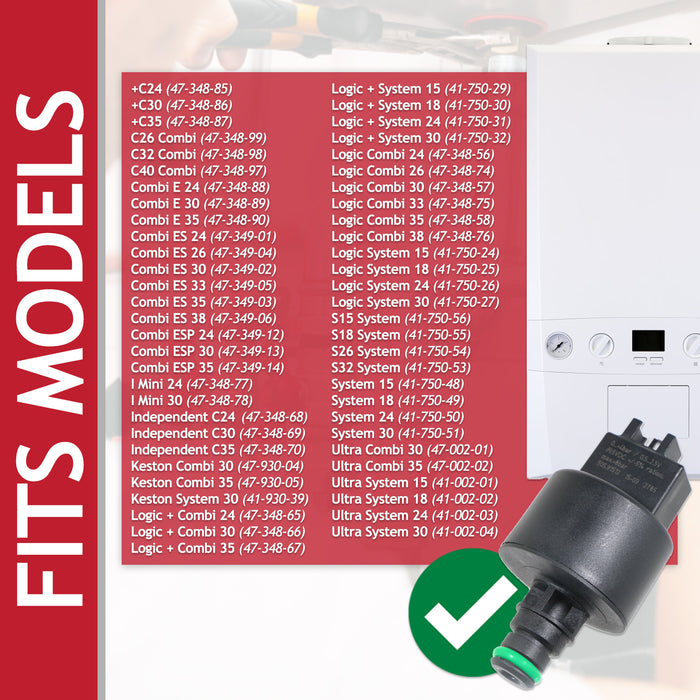

Fits Models:

For IDEAL

+C24 (47-348-85)
+C30 (47-348-86)
+C35 (47-348-87)
C26 Combi (47-348-99)
C32 Combi (47-348-98)
C40 Combi (47-348-97)
Combi E 24 (47-348-88)
Combi E 30 (47-348-89)
Combi E 35 (47-348-90)
Combi ES 24 (47-349-01)
Combi ES 26 (47-349-04)
Combi ES 30 (47-349-02)
Combi ES 33 (47-349-05)
Combi ES 35 (47-349-03)
Combi ES 38 (47-349-06)
Combi ESP 24 (47-349-12)
Combi ESP 30 (47-349-13)
Combi ESP 35 (47-349-14)
I Mini 24 (47-348-77)
I Mini 30 (47-348-78)
Independent C24 (47-348-68)
Independent C30 (47-348-69)
Independent C35 (47-348-70)
Keston Combi 30 (47-930-04)
Keston Combi 35 (47-930-05)
Keston System 30 (41-930-39)
Logic + Combi 24 (47-348-65)
Logic + Combi 30 (47-348-66)
Logic + Combi 35 (47-348-67)
Logic + System 15 (41-750-29)
Logic + System 18 (41-750-30)
Logic + System 24 (41-750-31)
Logic + System 30 (41-750-32)
Logic Combi 24 (47-348-56)
Logic Combi 26 (47-348-74)
Logic Combi 30 (47-348-57)
Logic Combi 33 (47-348-75)
Logic Combi 35 (47-348-58)
Logic Combi 38 (47-348-76)
Logic System 15 (41-750-24)
Logic System 18 (41-750-25)
Logic System 24 (41-750-26)
Logic System 30 (41-750-27)
S15 System (41-750-56)
S18 System (41-750-55)
S26 System (41-750-54)
S32 System (41-750-53)
System 15 (41-750-48)
System 18 (41-750-49)
System 24 (41-750-50)
System 30 (41-750-51)
Ultra Combi 30 (47-002-01)
Ultra Combi 35 (47-002-02)
Ultra System 15 (41-002-01)
Ultra System 18 (41-002-02)
Ultra System 24 (41-002-03)
Ultra System 30 (41-002-04)

This product is designed to be compatible with the specified brand(s) and is not the original part. The name, model names and any part numbers of the original manufacturer(s) have been used for reference purposes only and are in no way associated with the original parts or manufacturer.
