Optimum 7 Day Socket Box Timer Time Switch Surface Single Wall Pattress

by Optimum
£25.39
**Free Tracked Shipping**

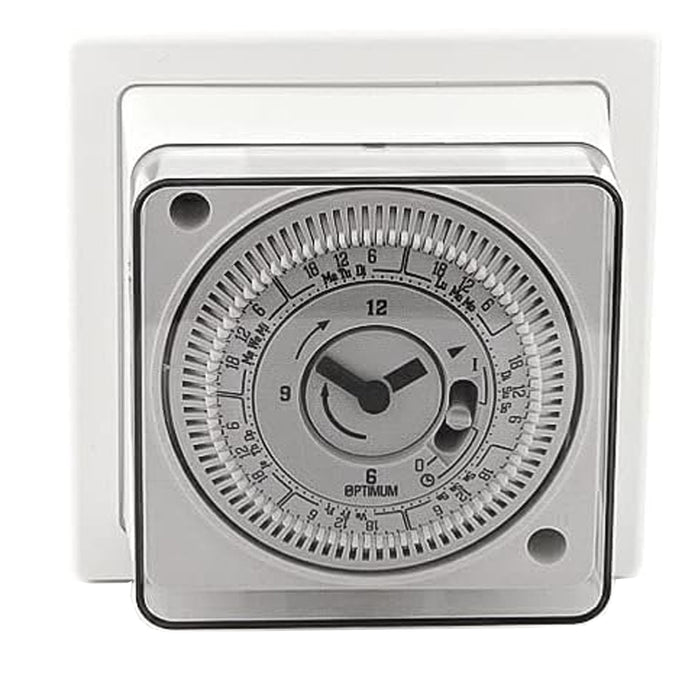

Optimum 7 Day Socket Box Timer

Brand new, captive-tappet 7 day time switch. Each tappet operates the output for a period of 2 hours. The timer is suitable for installation on a surface or in-wall pattress box. The 7 day dial controls a volt-free changeover, switch, with a resistive rating of 16 amperes.

Specification:

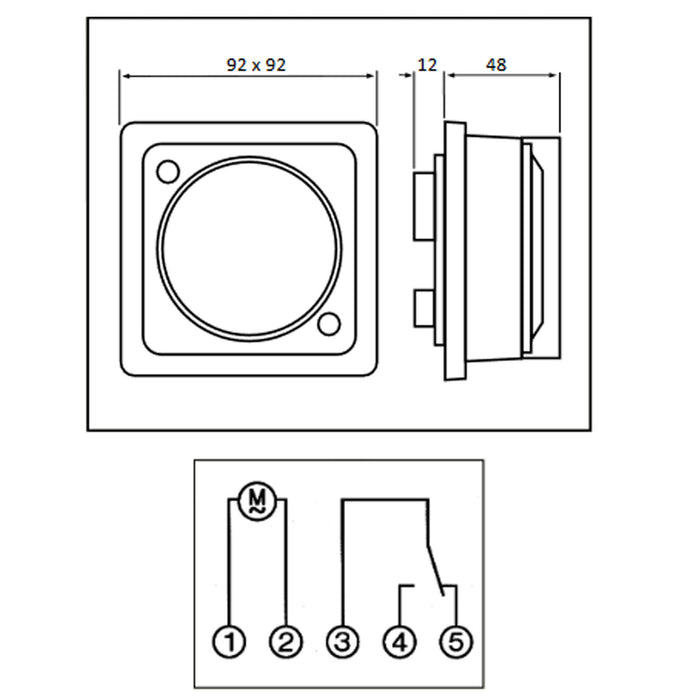

Dimensions: 92 x 92 x 48 (See Drawing Below)
Connections 5 x Wire-protect Screw Terminals + Earth Park
Weight 160g
Power Consumption 1va @ 230v 50hz
Resistive Load 16 Amperes
Inductive Load 8 Amperes (Cos Ø 0.6)
Minimum Load 100ma @ 20v Ac/dc
Temperature Rating -20t55
Accuracy Main Synchronised (Typically +/- 2.5 Sec / Day)
Minimum Switching 2 Hours
Manual Override Fix on / Timed / Fix Off
