Self Balancing TRV Kit 15mm Thermostatic Radiator Valve Lockshield Heating Temperature Regulating Flow Control Set

£24.39
**Free Tracked Shipping**

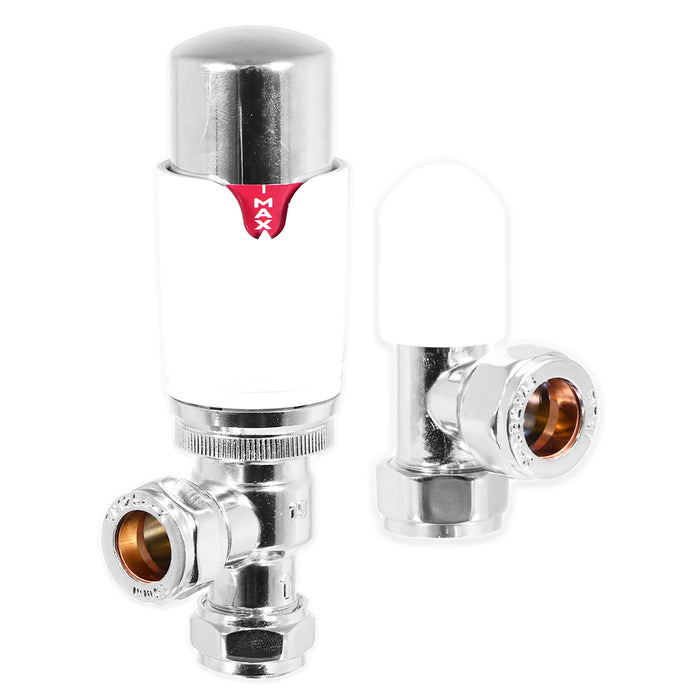

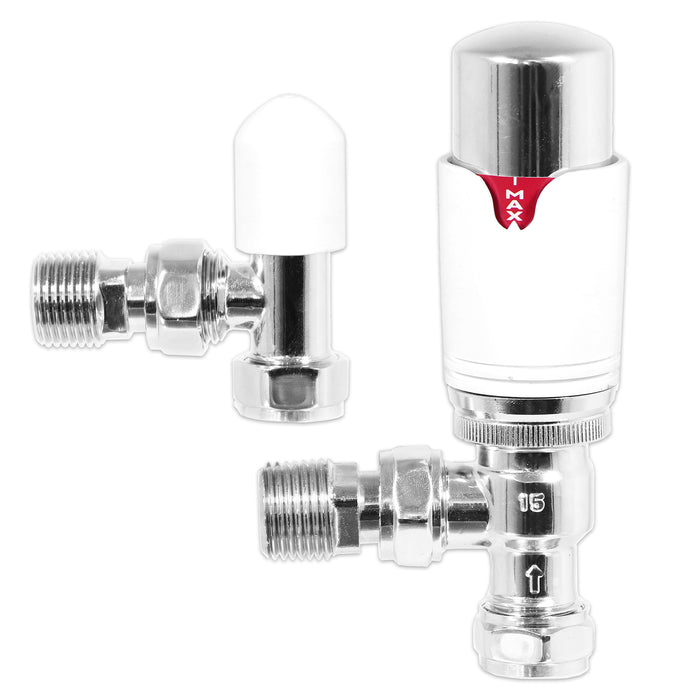

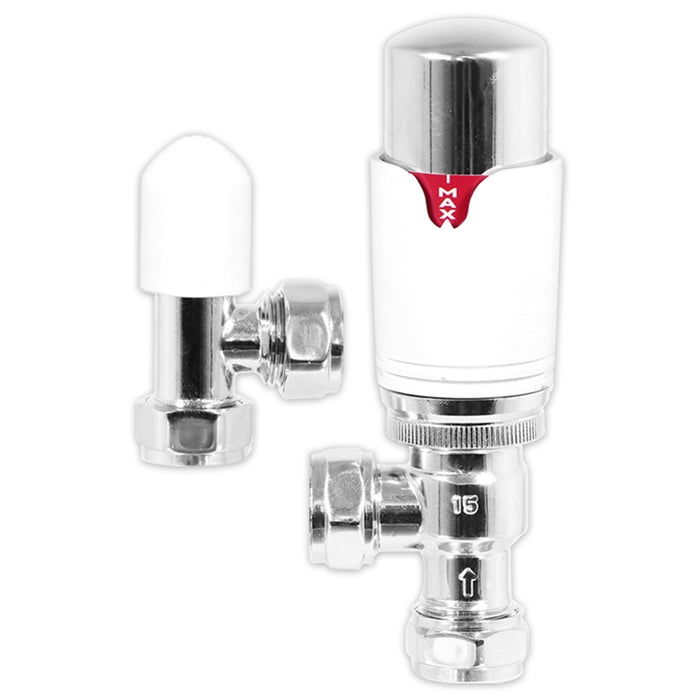

Chrome Plated Brass Self Balancing Thermostatic Radiator Valve and Lockshield Kit

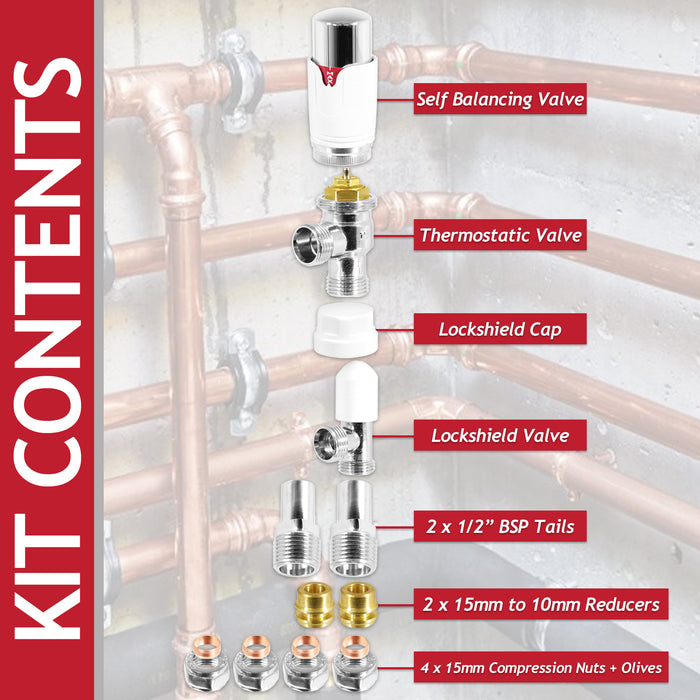

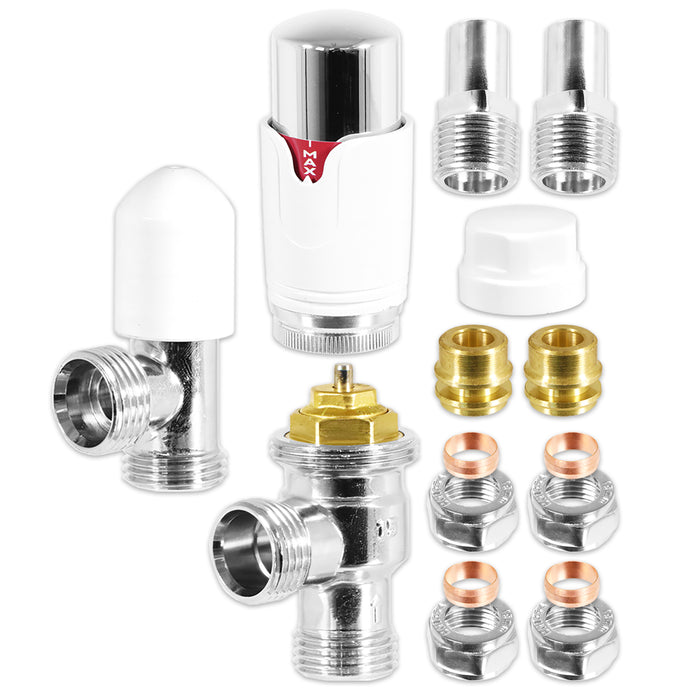

Kit Contains:

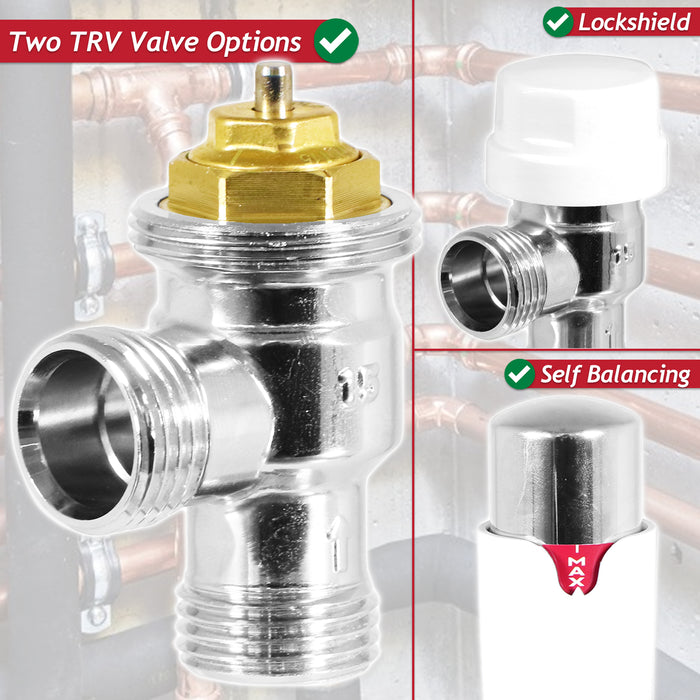

1 x Thermostatic Radiator Valve (TRV)
1 x Self Balancing Valve
1 x TRV Lockshield Cap
1 x Lockshield Valve

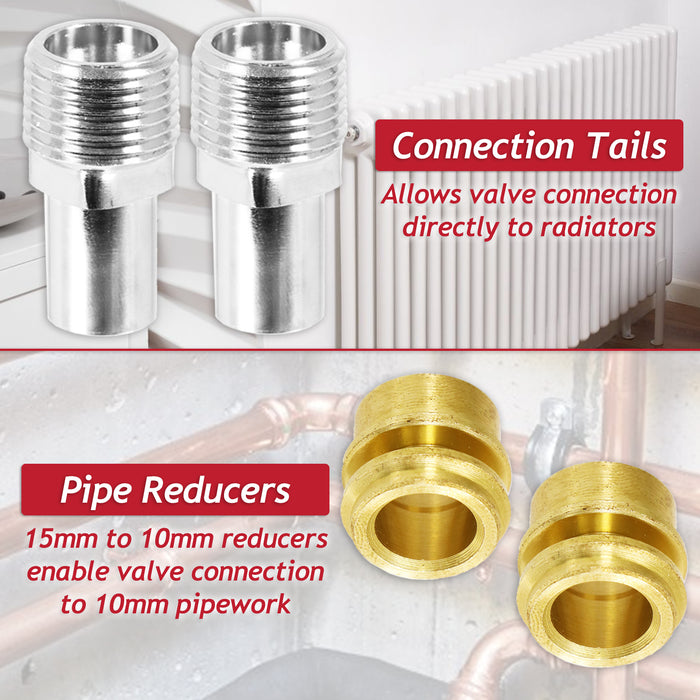

2 x 1/2" BSP Tails
2 x 15mm to 10mm Reducers
4 x 15mm Compression Nuts
4 x Compression Nut Olives

Brand new, premium quality chrome plated brass thermostatic radiator valve (TRV) and lockshield kit. This advanced valve kit is expertly designed for optimal flow control and temperature management in residential and commercial two-pipe heating systems and combines a sophisticated design with functionality for highly efficient operation and minimal maintenance. The operational principle of the valves centre around an automatic differential pressure regulator that stabilizes the flow rate across the heating system - despite variations in differential pressure. The TRV operates optimally at 70 kPa and includes all required necessary components for easy installation, including adapters for direct fitting to radiators and 10mm / 15mm pipeworks.

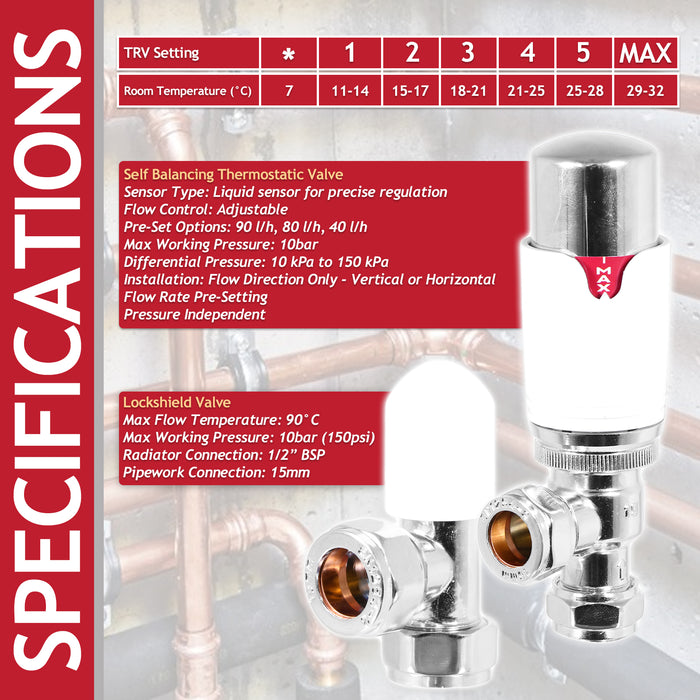

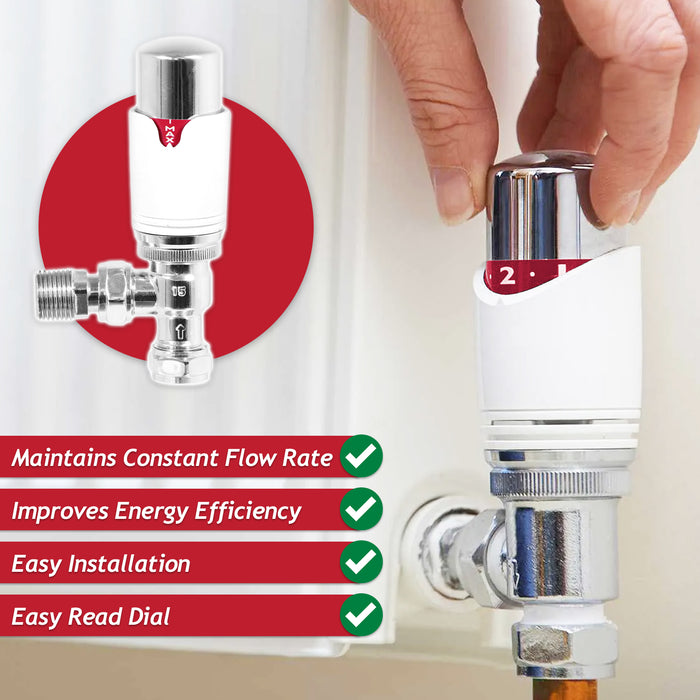

Self Balancing Valve Specifications:

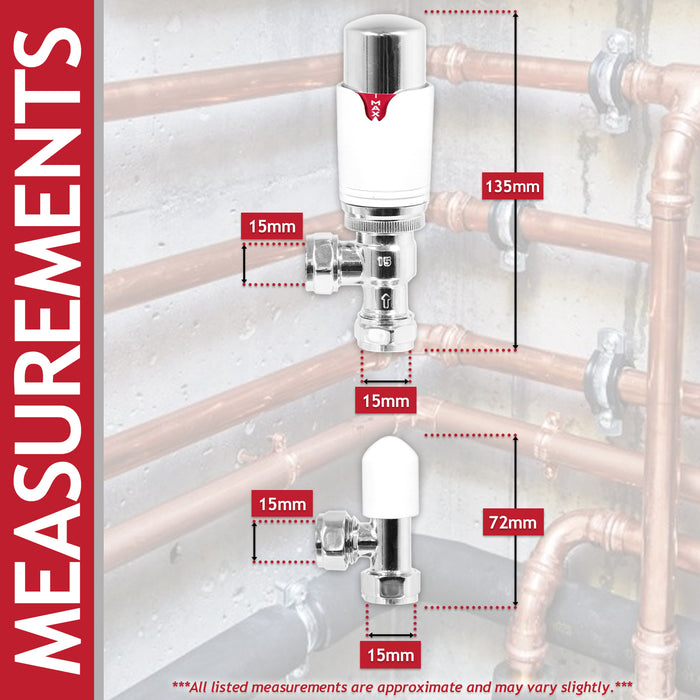

Length: 135mm
Connections: 15mm
Sensor Type: Liquid Sensor for Precise Regulation
Flow Control: Adjustable
Pre-Set Options: 90 l/h, 80 l/h, 40 l/h
Max Working Pressure: 10bar
Optimial Operation: 70 kPa
Differential Pressure: 10 kPa to 150 kPa
Installation: Flow Direction Only - Vertical or Horizontal
Material: Chrome Plated Brass
Flow Rate Pre-Setting
Pressure Independent
Energy Efficient

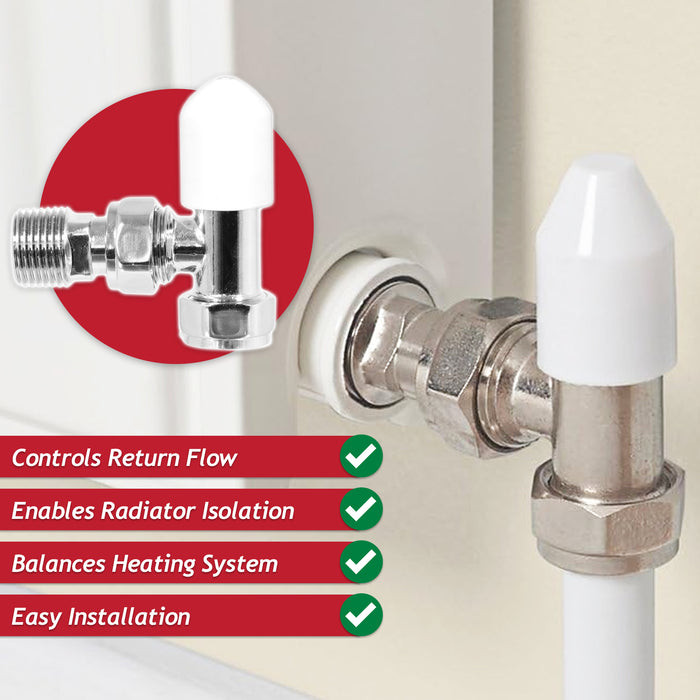

Lockshield Valve Specifications:
Length: 72mm
Connections: 15mm
Max Flow Temperature: 90°C
Max Working Pressure: 10bar (150psi)
Radiator Connection: 1/2” BSP
Pipework Connection: 15mm
Material: Chrome Plated Brass
Controls Return Flow
Enables Radiator Isolation
