Straight Bayonet Gas Supply Hose Pipe + Socket + PTFE Tape Kit for Oven Cookers (1.25m x 1/2" BSP, EN 14800 Approved)

Universal Straight Bayonet Gas Supply Hose + Straight Socket + PTFE Tape Kit for Oven Cookers (1.25m x 1/2" BSP)

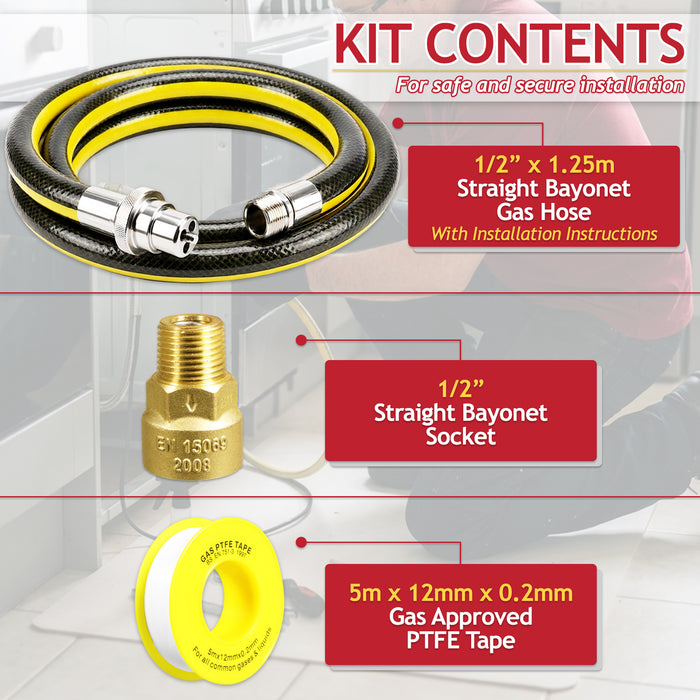

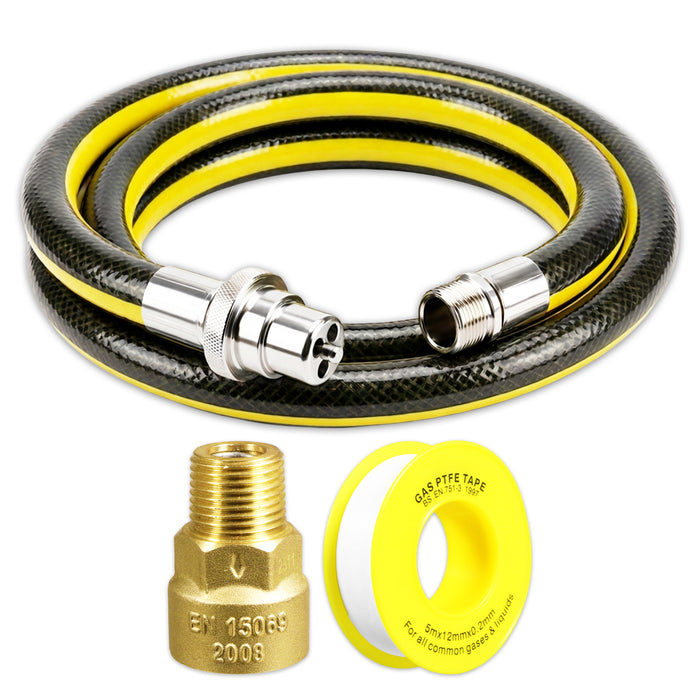

Kit Contains:
1/2” BSP x 1.25m Straight Bayonet Gas Hose
1/2" BSP Straight Bayonet Socket
5m x 12mm x 0.2mm Gas Approved PTFE Tape Roll

Brand new, premium quality universal straight bayonet gas supply hose, straight socket and PTFE tape kit for oven cookers, featuring a flexible, heavy-duty steel construction with braided reinforcement and a protective polymeric outer hose coating for enhanced durability. Designed for domestic gas appliances, the hose has a length of 1.25m and combines a straight bayonet connector with a 1/2" BSP male threaded fitting for a secure and reliable connection. Manufactured to EN 14800:2007, the hose is suitable for Natural Gas and LPG applications and provides a robust, flexible connection that is ideal for installation where space behind the appliance may be limited. The bundled 1/2" straight bayonet socket provides the mating connection for the straight bayonet hose, with an in-line configuration suited to installations where a straight connection arrangement is preferred. Gas-approved PTFE tape is also included to help achieve a reliable, leak-tight threaded connection.

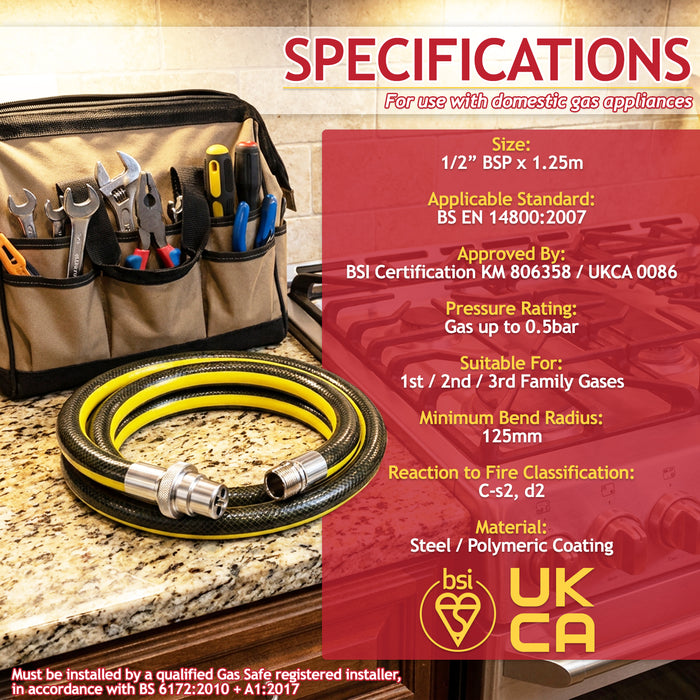

Hose Specifications:

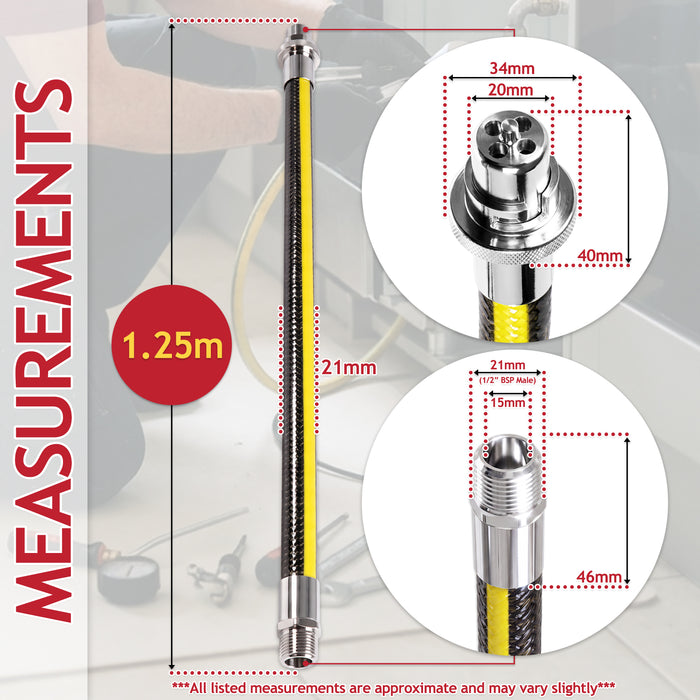

Size: 1/2” BSP x 1.25m
Applicable Standard: BS EN 14800:2007
Approved By: BSI Certification KM 806358 / UKCA 0086
Pressure Rating: Gas up to 0.5bar
Suitable For: 1st / 2nd / 3rd Family Gases
Minimum Bend Radius: 125mm
Reaction to Fire Classification: C-s2, d2
Material: Steel / Polymeric Coating
Heat Resistance: Up to 60°C (140°F)
Weight: 560g

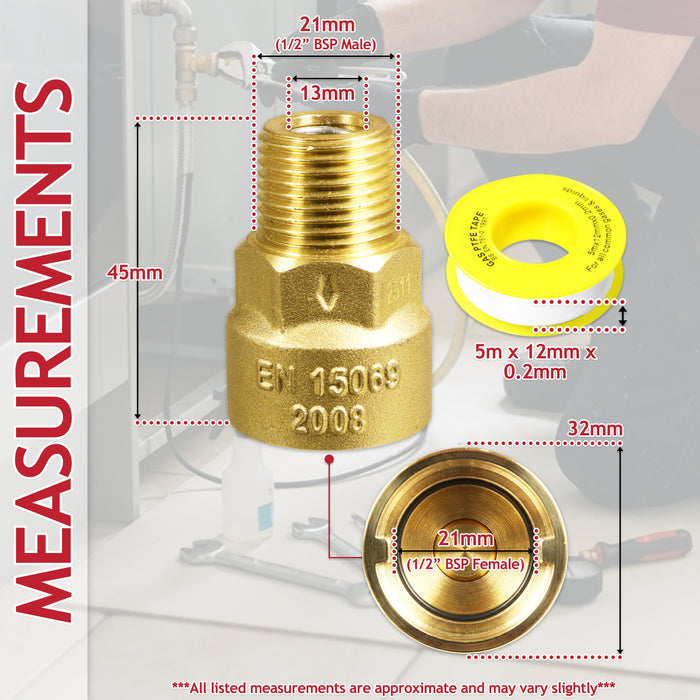

Straight Socket Specifications:
Applicable Standard: BS EN 15069:2008
Overall Height: 45mm
Male Thread Diameter: 21 mm (1/2" BSP Male)
Male Bore Diameter: 13mm
Socket Diameter: 32mm
Female Thread Diameter: 21 mm (1/2" BSP Female)
***Please see images for detailed illustration of listed measurements***
Material: Brass
UKCA Marked
BSI Marked

PTFE Specifications:
Applicable Standard: BS EN 751-3:1997
Length: 5m
Depth: 12mm
Thickness: 0.2mm
Suitable For: All common gases and liquids

Product Features:
EN 14800:2007 APPROVED – Manufactured in accordance with the recognised European standard for corrugated safety metal hose assemblies used to connect domestic appliances using gaseous fuels.

BSI / UKCA APPROVED (KM 806358 / UKCA 0086) – Independently approved to ensure product quality, construction and conformity to the applicable standard.

1.25 METRE LENGTH – Generous 1.25m (1250mm) overall length provides useful reach for positioning compatible domestic gas appliances while maintaining a flexible connection.

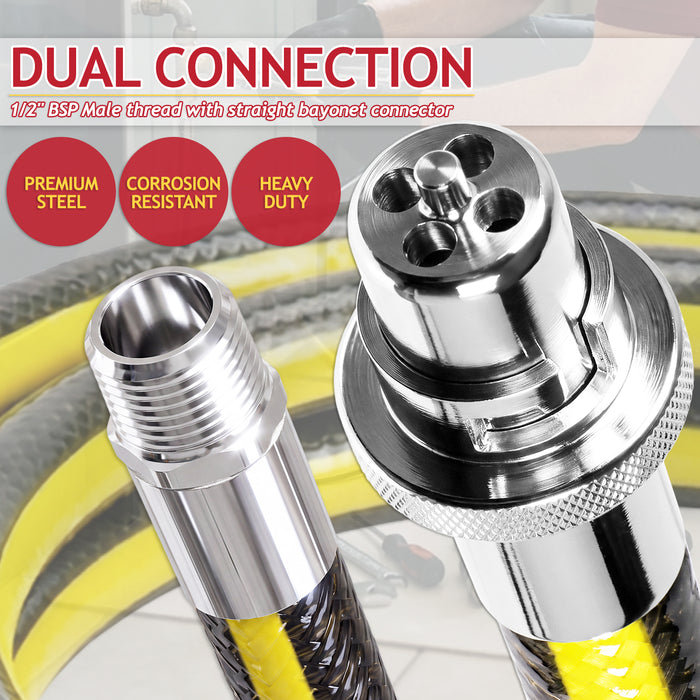

1/2" BSP MALE CONNECTION – Features a widely used 1/2" BSP male threaded connection for connection to a compatible appliance or appropriate gas fitting.

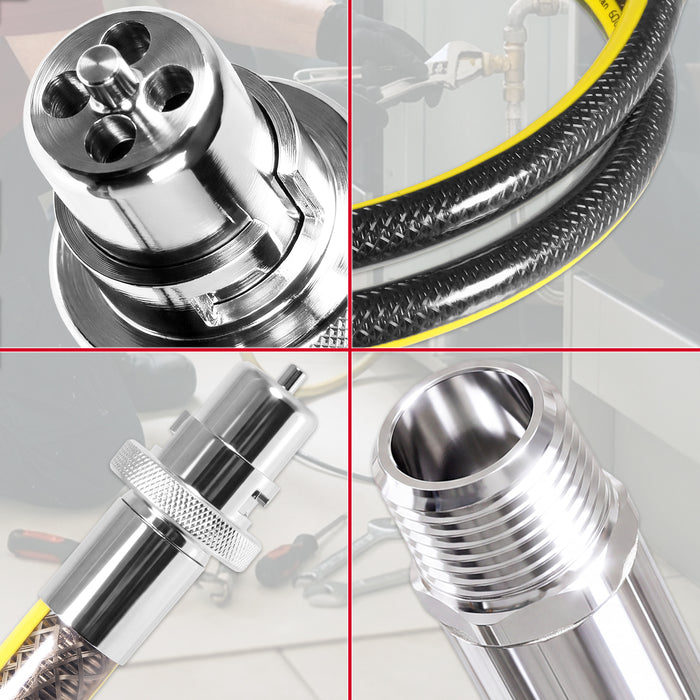

STRAIGHT BAYONET CONNECTION – Equipped with a straight bayonet fitting designed for connection to a compatible gas cooker bayonet socket.

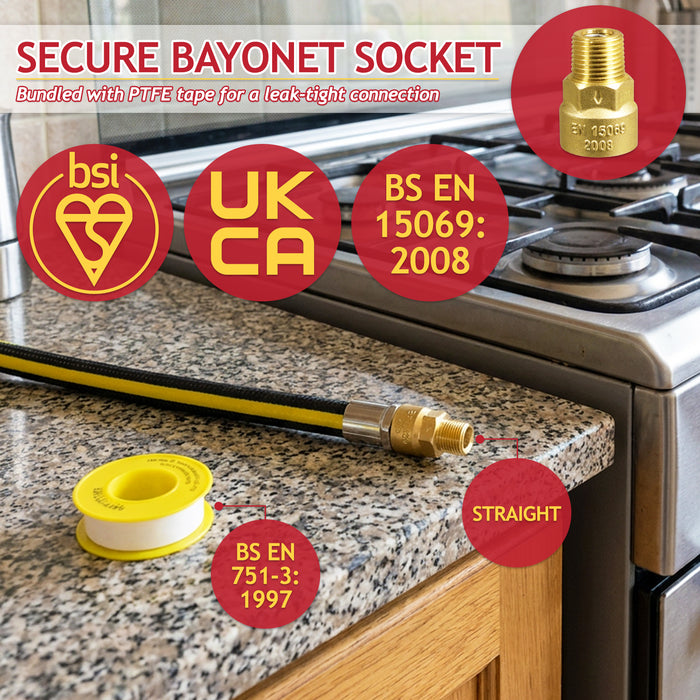

BRASS 1/2" STRAIGHT BAYONET SOCKET – Provides the mating connection for the straight bayonet hose, with a compact in-line design for a straightforward and reliable installation.

GAS APPROVED PTFE TAPE – 5m roll of gas-approved (BS EN 751-3:1997) thread sealing tape supplied to assist with sealing compatible threaded connections for a secure, leak-tight installation.

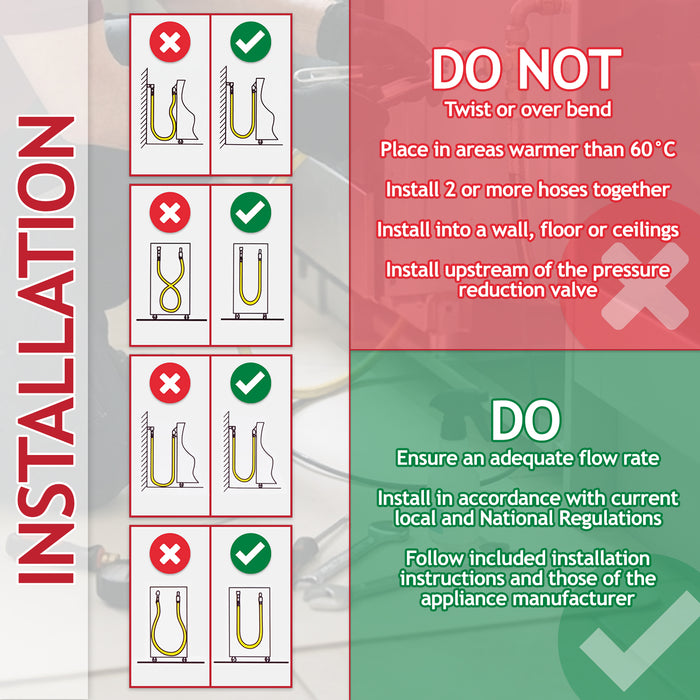

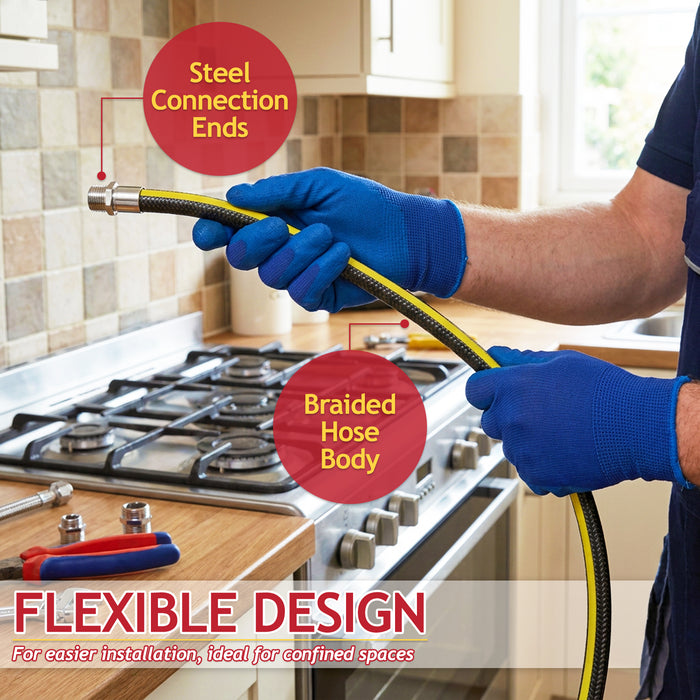

IDEAL FOR CONFINED SPACES – Flexible construction makes the hose particularly practical where working room behind a cooker or appliance is limited, subject to the specified minimum bend radius of 125mm and correct installation.

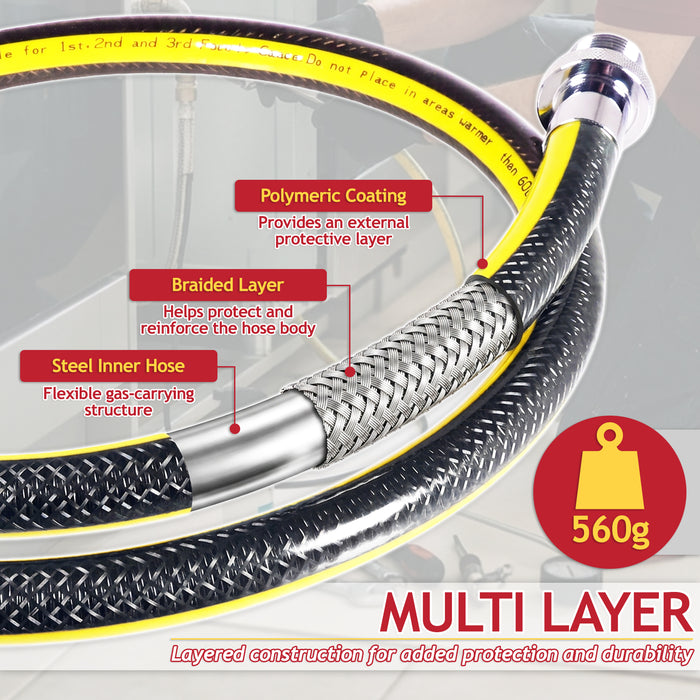

MULTI-LAYER CONSTRUCTION – Layered hose design combines the flexible inner gas-carrying structure, braided reinforcement and external protective coating to provide a robust overall assembly.

MULTI-GAS SUITABILITY – Designed for use across 1st, 2nd and 3rd family gaseous-fuel installations rather than being restricted to a single fuel application.

0.5 BAR WORKING PRESSURE – Designed for low-pressure domestic gas-appliance connections with a maximum working pressure of 0.5 bar.

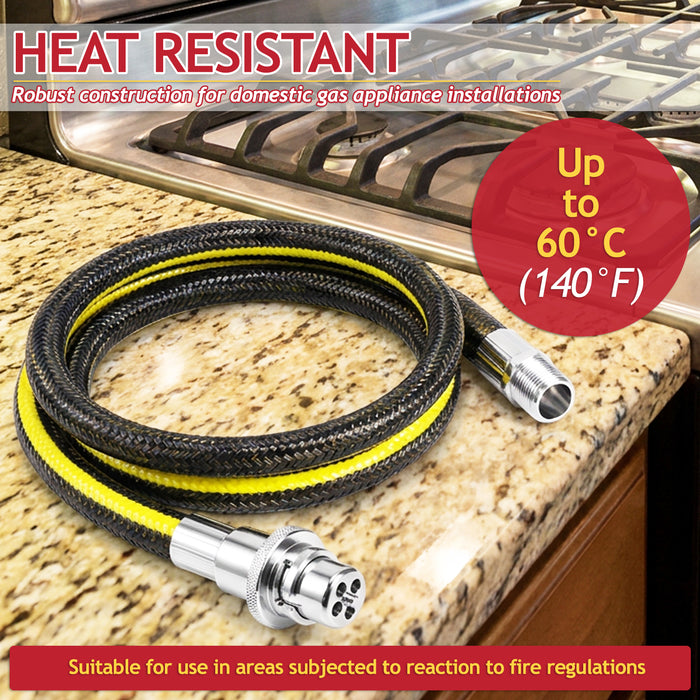

HEAT RESISTANT – Suitable for use within the stated temperature limitation of up to 60°C (140°F), making the hose appropriate for domestic cooking-appliance installations.

INSTRUCTIONS INCLUDED - Detailed instruction booklet included to aid with the safe and proper installation of the hose. (IMPORTANT: Must be installed by a qualified Gas Safe registered installer, in accordance with BS 6172:2010 + A1:2017)

Fits Models:

UNIVERSAL

Fits all brands and models of oven cookers requiring a 1/2" BSP male thread and straight bayonet connection. Please check images and listed measurements to confirm suitability before purchase.
