Straight Bayonet Gas Supply Hose Pipe + Socket + Safety Chain + PTFE Tape Kit for Oven Cookers (1.25m x 1/2" BSP, EN 14800 Approved)

Universal Straight Bayonet Gas Supply Hose + Straight Socket + Stability Chain + PTFE Tape Kit for Oven Cookers (1.25m x 1/2" BSP)

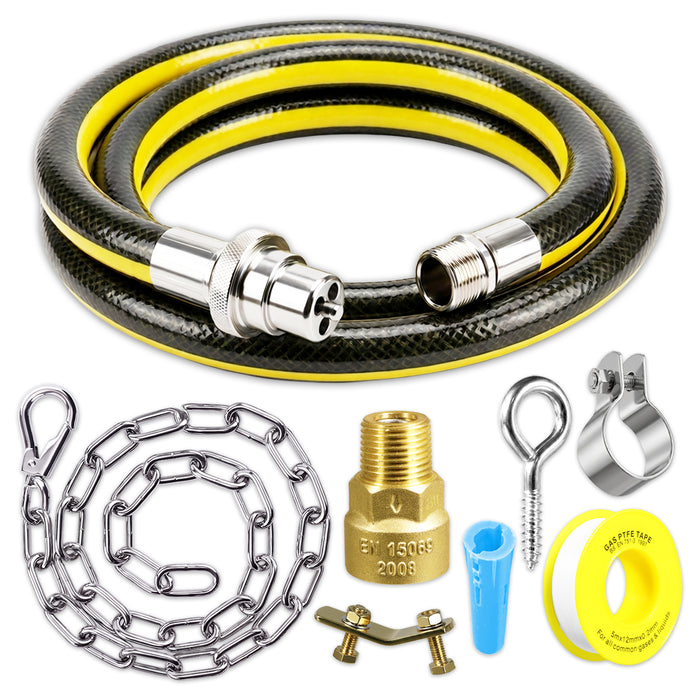

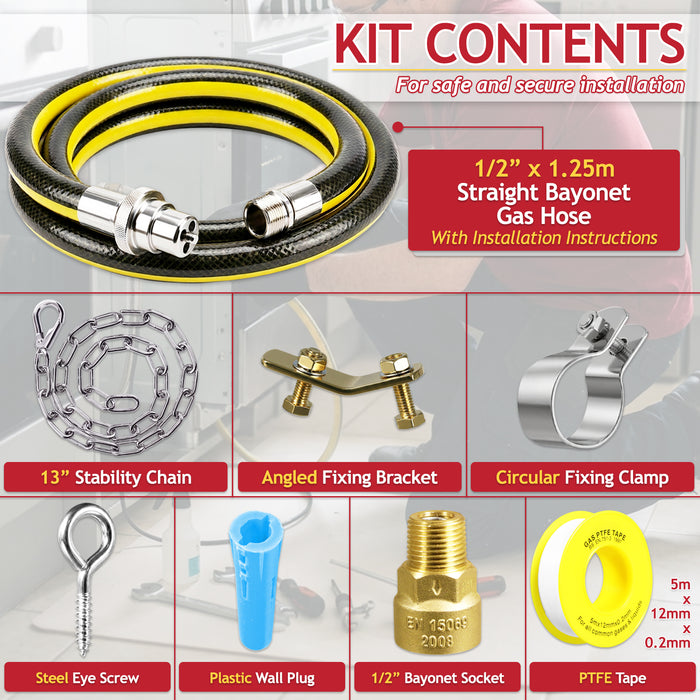

Kit Contains:
1/2” BSP x 1.25m Straight Bayonet Gas Hose
1/2" BSP Straight Bayonet Socket
Stability Kit (13" Stability Chain, Angled Fixing Bracket, Circular Fixing Clamp, Steel Eye Screw, Plastic Wall Plug)
5m x 12mm x 0.2mm Gas Approved PTFE Tape Roll

Brand new, premium quality universal straight bayonet gas supply hose, straight socket, stability chain kit and PTFE tape roll for oven cookers, featuring a flexible, heavy-duty steel construction with braided reinforcement and a protective polymeric outer hose coating for enhanced durability. Designed for domestic gas appliances, the hose has a length of 1.25m and combines a straight bayonet connector with a 1/2" BSP male threaded fitting for a secure and reliable connection. Manufactured to EN 14800:2007, the hose is suitable for Natural Gas and LPG applications and provides a robust, flexible connection that is ideal for installation where space behind the appliance may be limited. The bundled 1/2" straight bayonet socket provides the mating connection for the straight bayonet hose, with an in-line configuration suited to installations where a straight connection arrangement is preferred. The stability chain kit provides added security and stability, helping to restrain the cooker and hose against unwanted movement while offering versatile fixing options to suit the installation. Complete with gas-approved PTFE tape included to help achieve a reliable, leak-tight threaded connection.

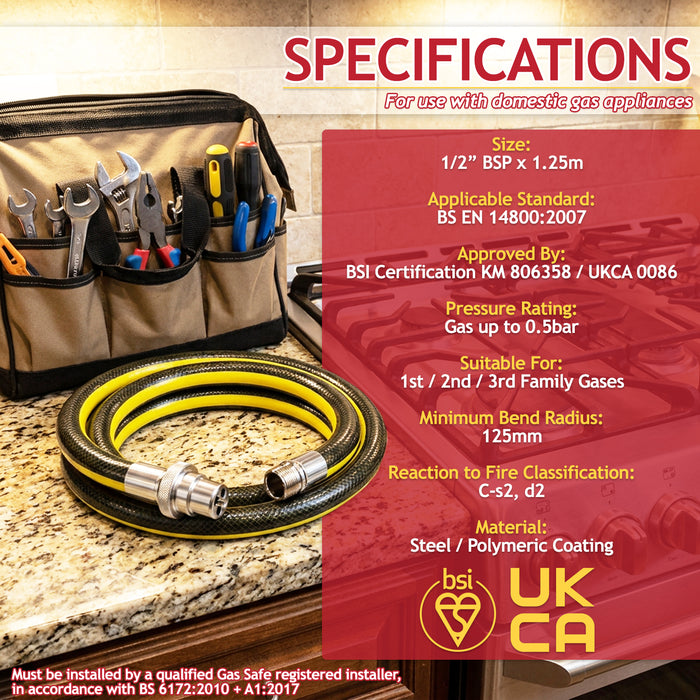

Hose Specifications:

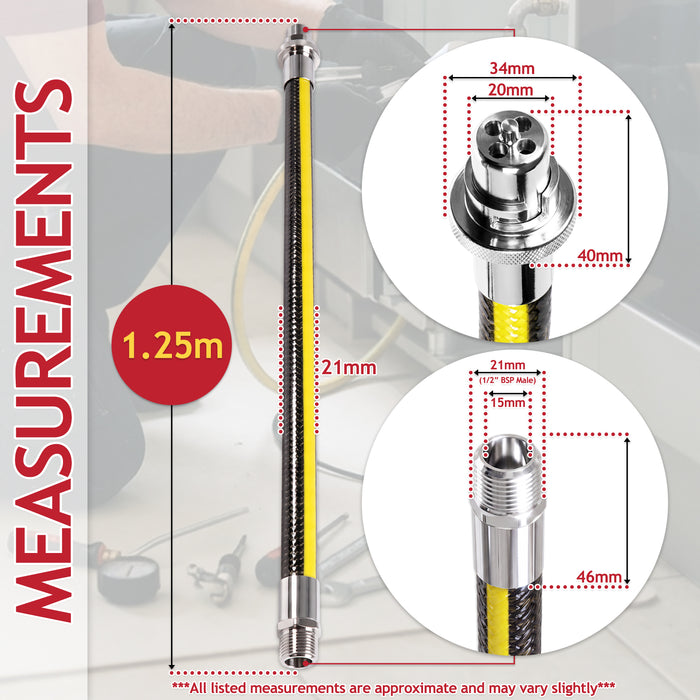

Size: 1/2” BSP x 1.25m
Applicable Standard: BS EN 14800:2007
Approved By: BSI Certification KM 806358 / UKCA 0086
Pressure Rating: Gas up to 0.5bar
Suitable For: 1st / 2nd / 3rd Family Gases
Minimum Bend Radius: 125mm
Reaction to Fire Classification: C-s2, d2
Material: Steel / Polymeric Coating
Heat Resistance: Up to 60°C (140°F)
Weight: 560g

Straight Socket Specifications:
Applicable Standard: BS EN 15069:2008
Overall Height: 45mm
Male Thread Diameter: 21 mm (1/2" BSP Male)
Male Bore Diameter: 13mm
Socket Diameter: 32mm
Female Thread Diameter: 21 mm (1/2" BSP Female)

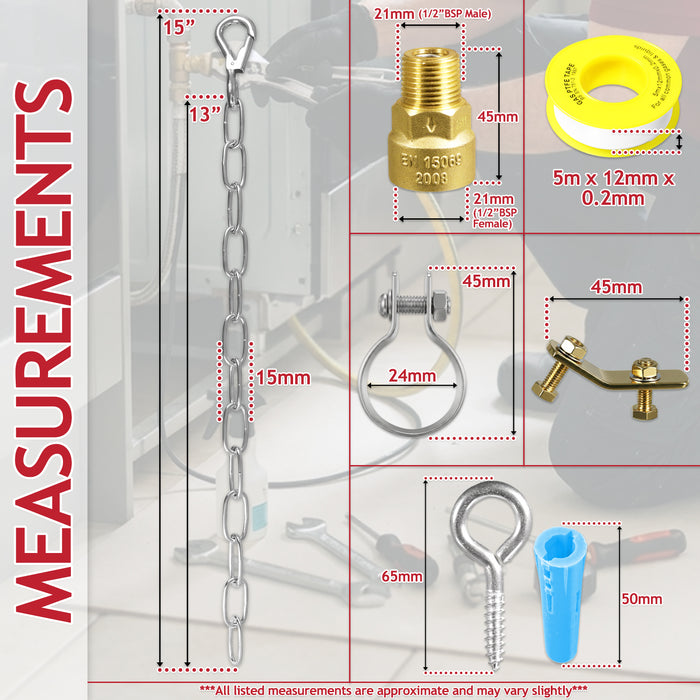

***Please see images for detailed illustration of listed measurements***
Material: Brass
UKCA Marked
BSI Marked

PTFE Specifications:
Applicable Standard: BS EN 751-3:1997
Length: 5m
Depth: 12mm
Thickness: 0.2mm
Suitable For: All common gases and liquids

Product Features:
EN 14800:2007 APPROVED – Manufactured in accordance with the recognised European standard for corrugated safety metal hose assemblies used to connect domestic appliances using gaseous fuels.

BSI / UKCA APPROVED (KM 806358 / UKCA 0086) – Independently approved to ensure product quality, construction and conformity to the applicable standard.

1.25 METRE LENGTH – Generous 1.25m (1250mm) overall length provides useful reach for positioning compatible domestic gas appliances while maintaining a flexible connection.

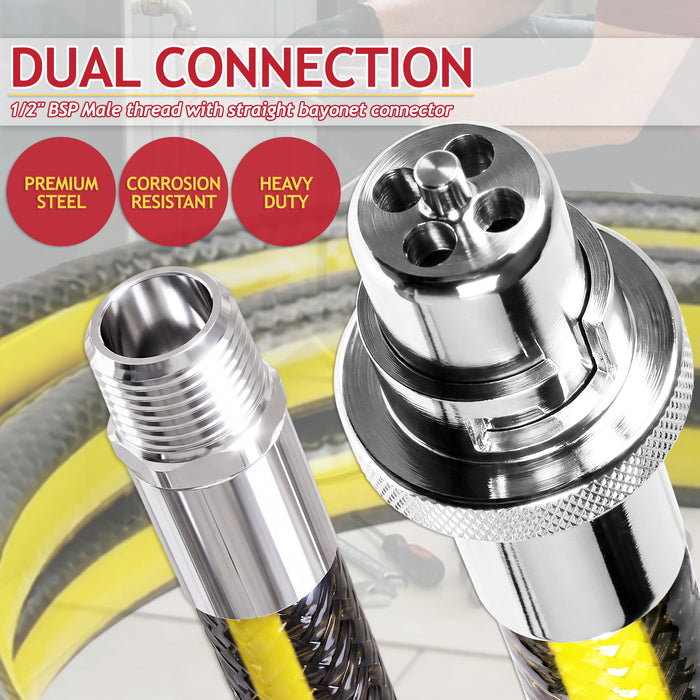

1/2" BSP MALE CONNECTION – Features a widely used 1/2" BSP male threaded connection for connection to a compatible appliance or appropriate gas fitting.

STRAIGHT BAYONET CONNECTION – Equipped with a straight bayonet fitting designed for connection to a compatible gas cooker bayonet socket.

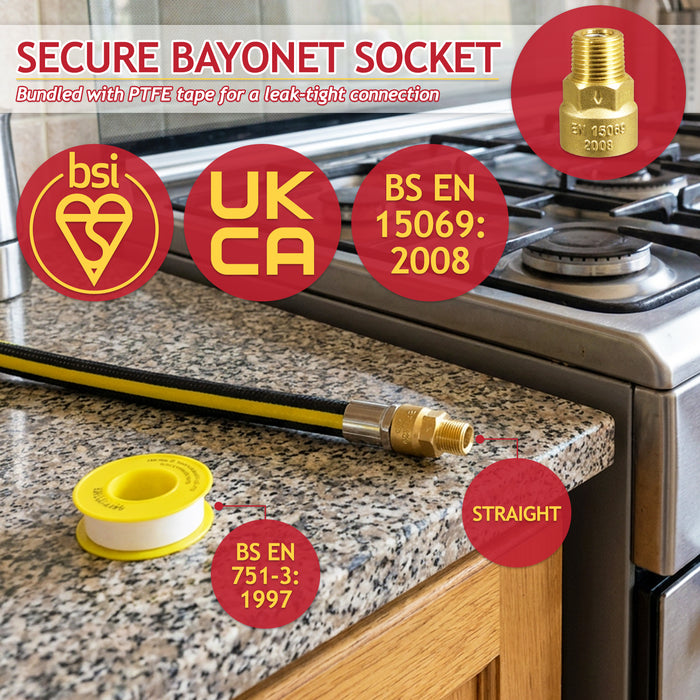

BRASS 1/2" STRAIGHT BAYONET SOCKET – Provides the mating connection for the straight bayonet hose, with a compact in-line design for a straightforward and reliable installation.

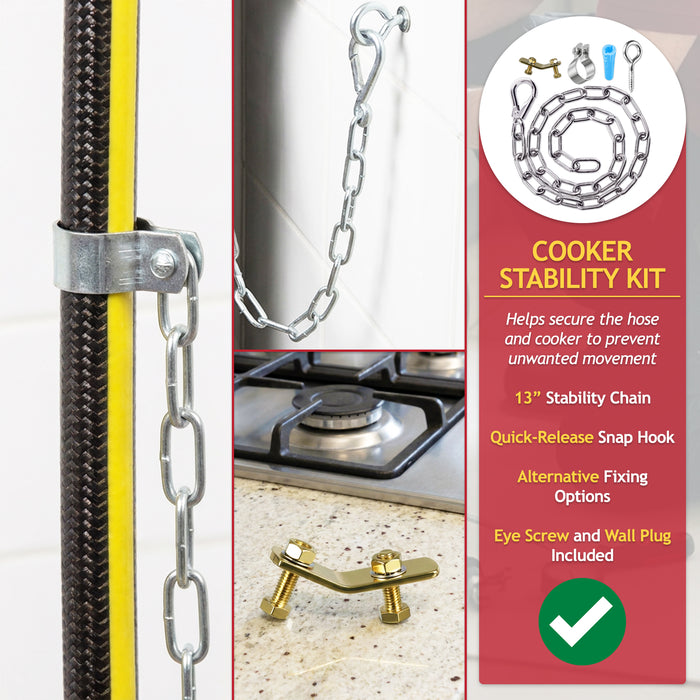

BUNDLED STABILITY CHAIN KIT – Provides added security and stability during installation, with a quick-release chain and versatile fixing options for securely restraining the cooker and hose.

GAS APPROVED PTFE TAPE – 5m roll of gas-approved (BS EN 751-3:1997) thread sealing tape supplied to assist with sealing compatible threaded connections for a secure, leak-tight installation.

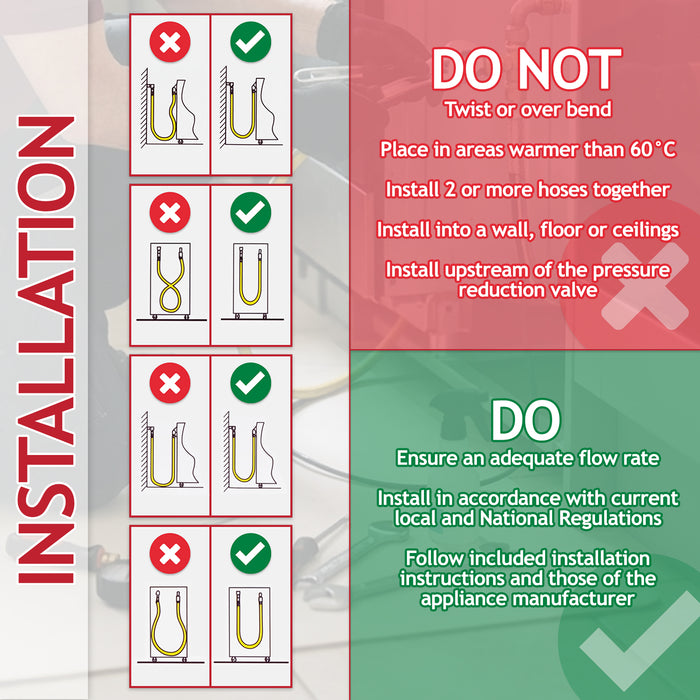

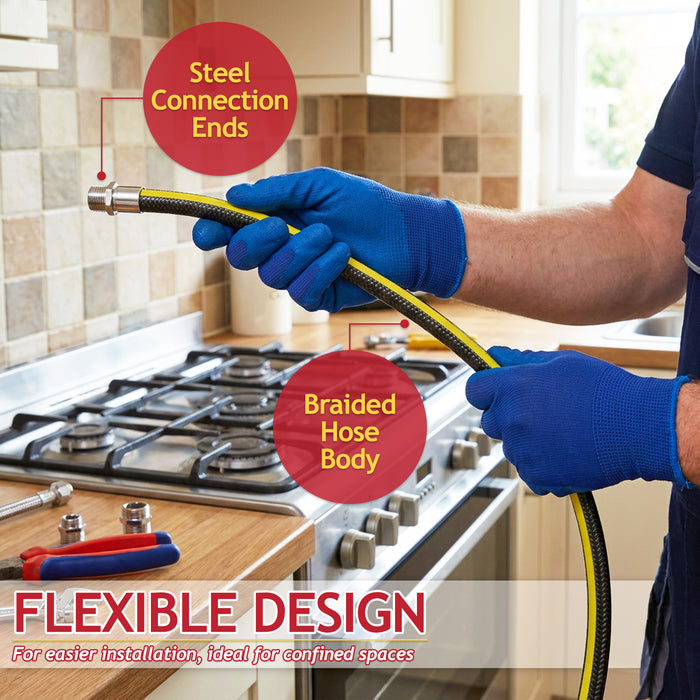

IDEAL FOR CONFINED SPACES – Flexible construction makes the hose particularly practical where working room behind a cooker or appliance is limited, subject to the specified minimum bend radius of 125mm and correct installation.

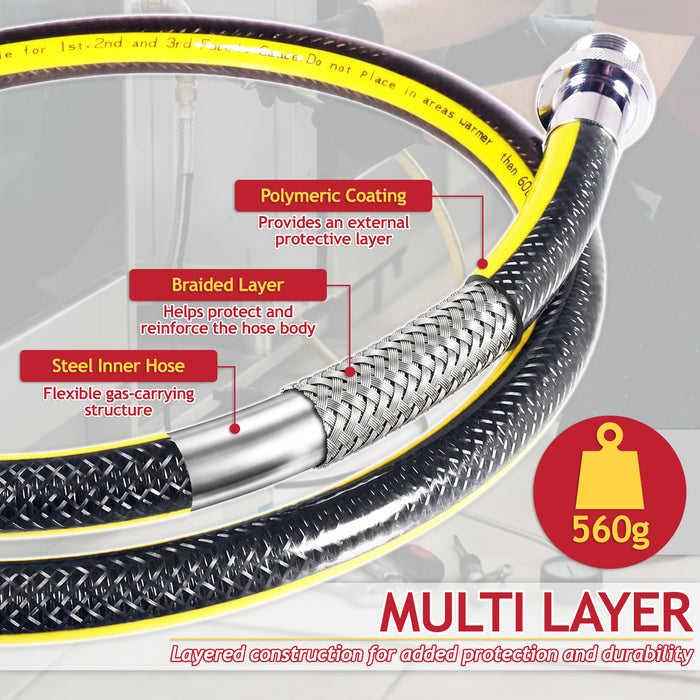

MULTI-LAYER CONSTRUCTION – Layered hose design combines the flexible inner gas-carrying structure, braided reinforcement and external protective coating to provide a robust overall assembly.

MULTI-GAS SUITABILITY – Designed for use across 1st, 2nd and 3rd family gaseous-fuel installations rather than being restricted to a single fuel application.

0.5 BAR WORKING PRESSURE – Designed for low-pressure domestic gas-appliance connections with a maximum working pressure of 0.5 bar.

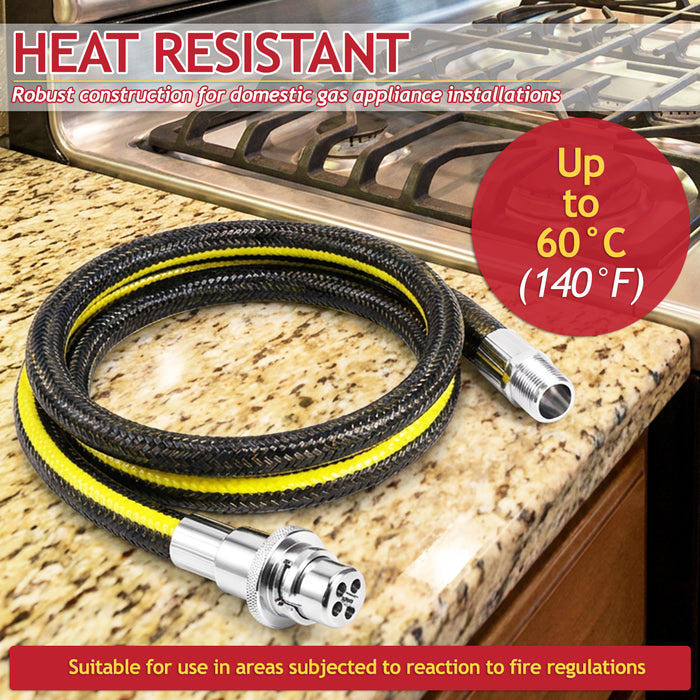

HEAT RESISTANT – Suitable for use within the stated temperature limitation of up to 60°C (140°F), making the hose appropriate for domestic cooking-appliance installations.

INSTRUCTIONS INCLUDED - Detailed instruction booklet included to aid with the safe and proper installation of the hose. (IMPORTANT: Must be installed by a qualified Gas Safe registered installer, in accordance with BS 6172:2010 + A1:2017)

Fits Models:

UNIVERSAL

Fits all brands and models of oven cookers requiring a 1/2" BSP male thread and straight bayonet connection. Please check images and listed measurements to confirm suitability before purchase.
