Toilet Pan Fixing Kit Angled Floor WC Bidet Basin Bathroom Bracket Set (White and Chrome Silver Caps)

Universal Angled Floor Toilet Pan / Bidet / Semi Pedestal Basin Fixing Kit (with White and Chrome Silver Caps)

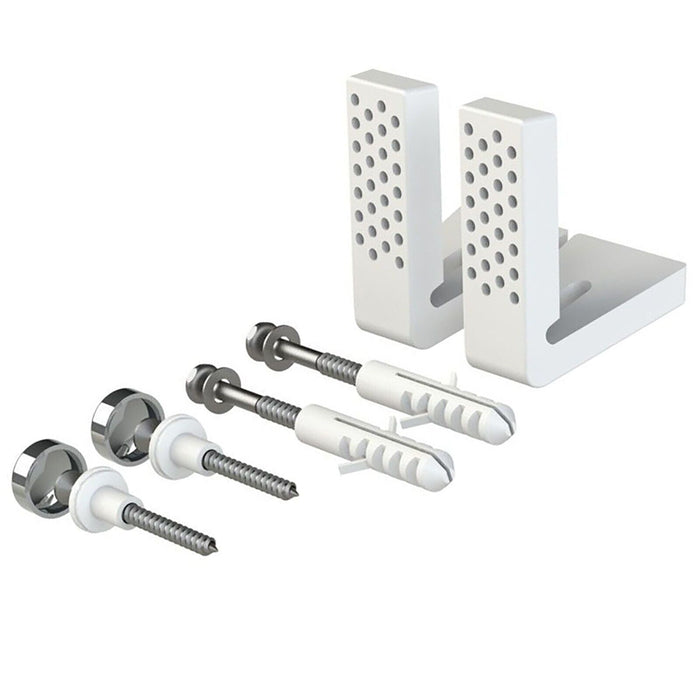

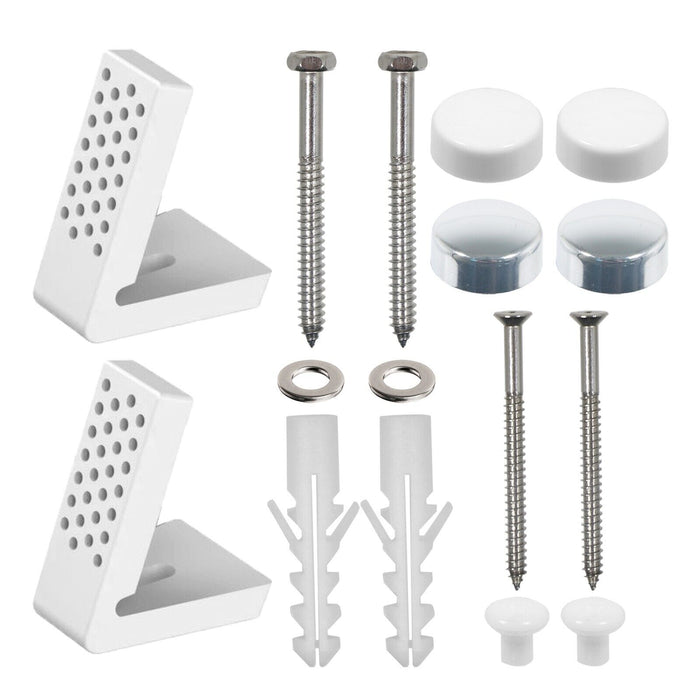

Kit Contains:
2 x Angled Brackets
2 x Hex Screws
2 x Metal Washers
2 x Plugs
2 x M6 Screws
2 x Nylon Bushes
2 x White Caps
2 x Chrome Silver Caps
Illustrated Installation Instructions

Brand new, premium quality universal angled floor fixing kit suitable for the majority of standard toilet pans, bidets and semi pedestal basins. This kit enables you to securely fix the toilet pan / bidet / semi pedestal basin firmly in place to eliminate any movement and includes both white and chrome silver cover caps, enabling you to choose the colour finish most suited to your bathroom décor.

Installation Instructions:

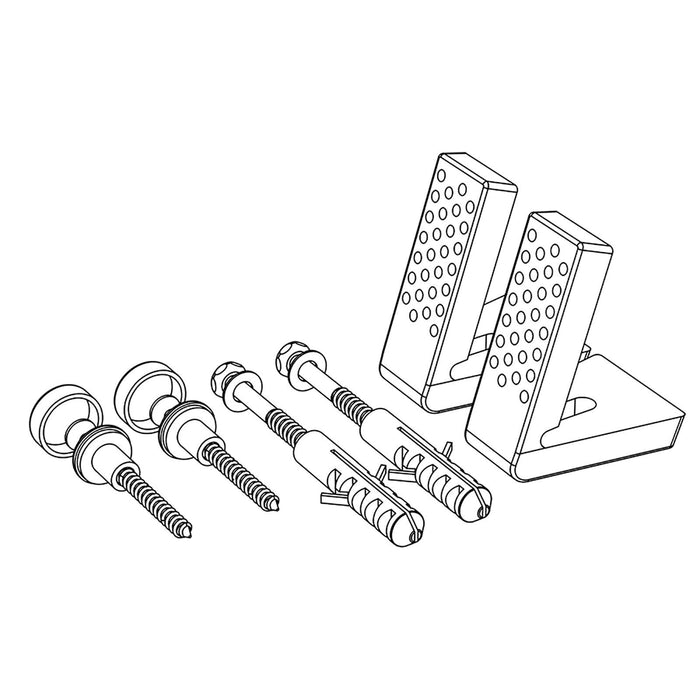

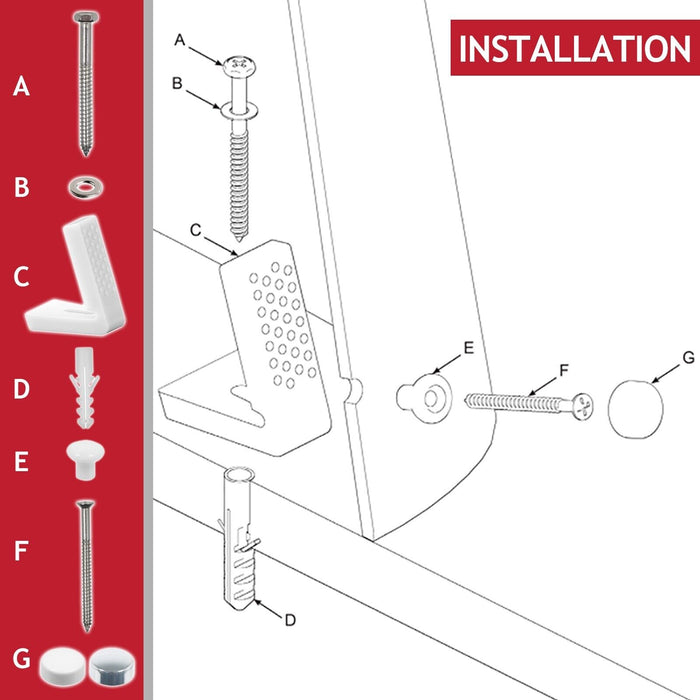

***See installation image above for corresponding lettered items***

1. Check and familiarise yourself with all the components.

2. Prior to carrying out the work, check the position of the W.C

3. Once happy with the position, mark on the floor directly in line with the holes on the side on the W.C. pan.

4. Take the W.C. pan away and from the marks on the floor then draw a horizontal line approximately 50mm in where the pan would be. This is where to drill holes in the floor at a depth of 60mm.

5. Once the holes have been drilled, insert nylon plug (D).

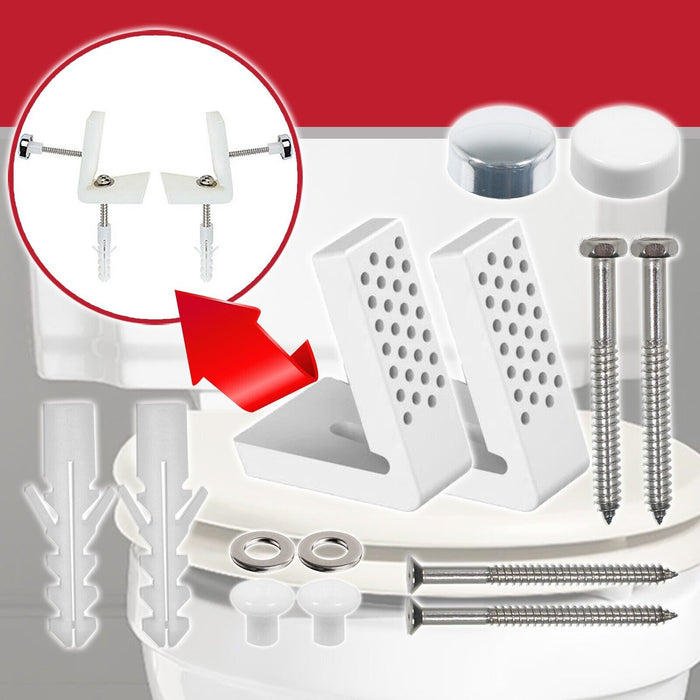

6. Place the angle bracket (C) over the hole and use hex screw (A) and metal washer (B) to secure it to the floor. The angle bracket position can be adjusted if required, by sliding it forward or backward.

7. This should be repeated on both sides.

8. Place the pan carefully over the W.C. angle brackets into position.

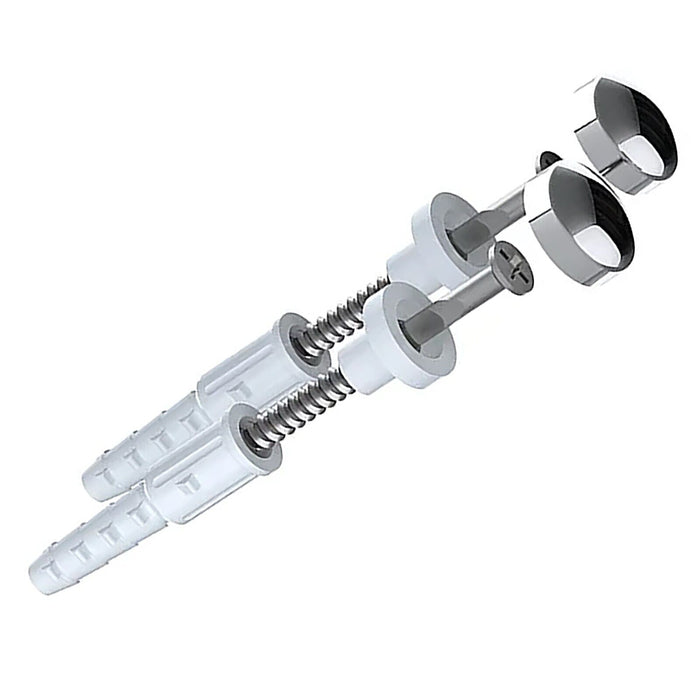

9. Insert nylon bush (E) into holes in the side of the W.C. pan.

10. Take steel screw (F) and tighten through the nylon bush (E) into the angle bracket (C), be careful not to over tighten.

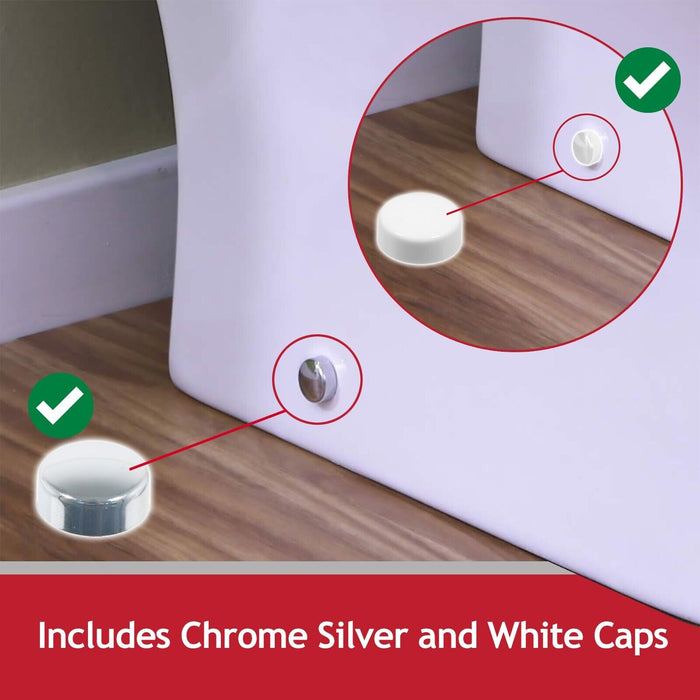

11. To finish place cap (G) over nylon bush (E).

12 . Finally check installation and ensure pan is secure to the floor and does not move.

Fits Models:

UNIVERSAL

Suitable for the majority of standard toilet pans / bidets / semi pedestal basins.

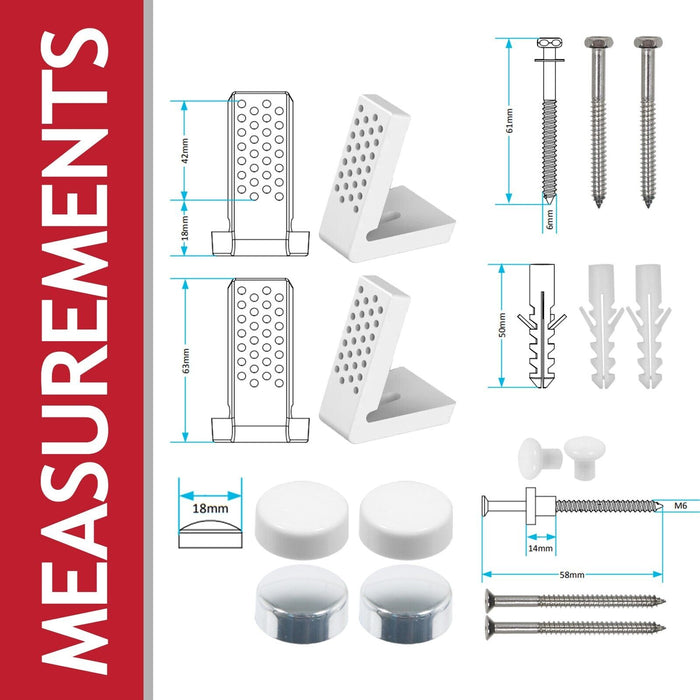

***Please carefully check images and measurements to confirm suitability before purchase.***
