Universal Toilet Cistern Close Coupling Fixing Kit Recessed Metal Plate Tank Pan Bowl Connector Set (1 1/2")

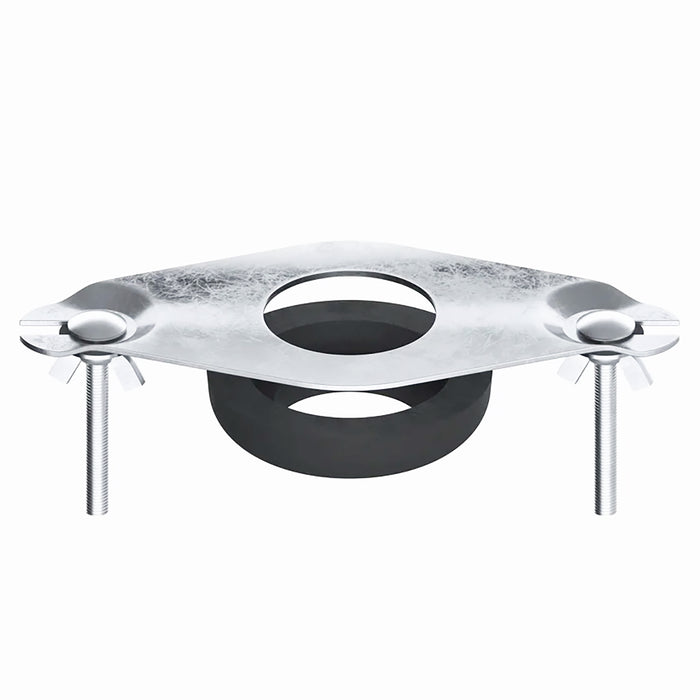

Universal 1 1/2" Toilet Cistern Tank to Pan Bowl Close Coupling Fixing Kit

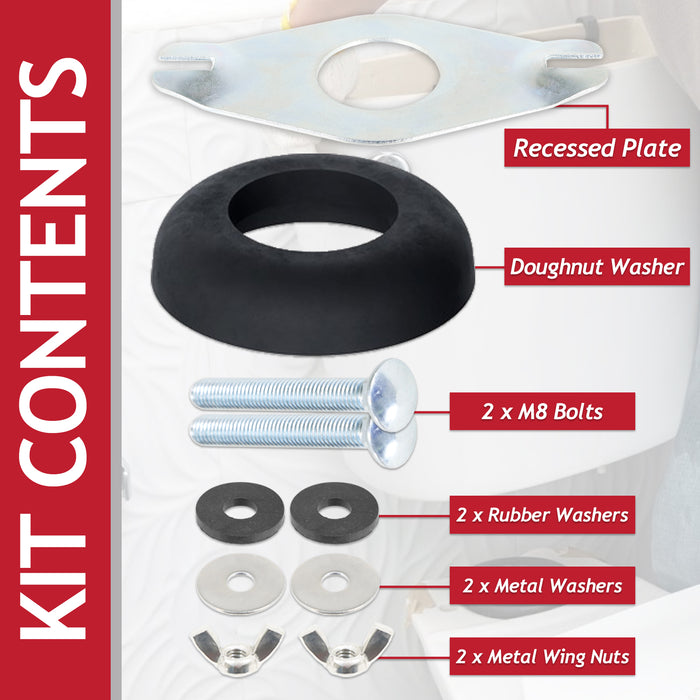

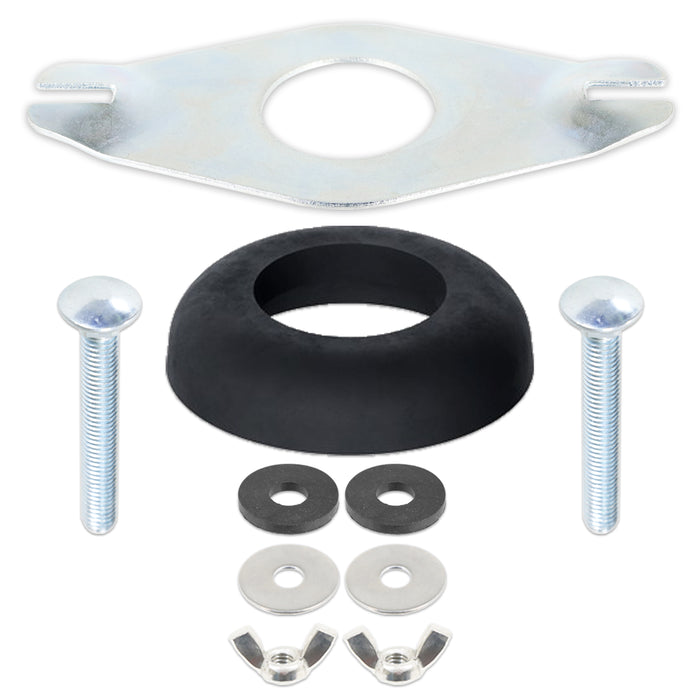

Kit Contains:

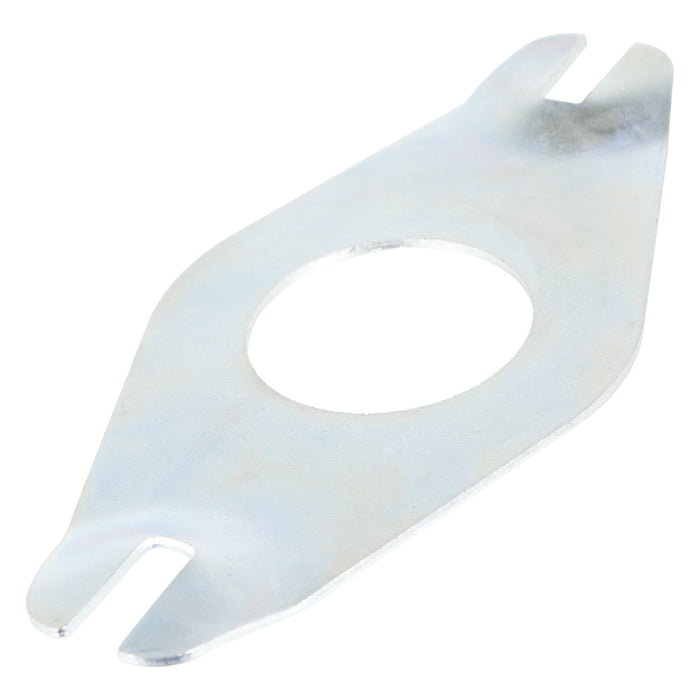

1 x Recessed Plate
1 x Doughnut Washer
2 x M8 Bolts
2 x Rubber Washers
2 x Metal Washers
2 x Metal Wing Nuts
Brand new, premium quality 1 1/2" close coupling fixing kit to securely connect toilet cistern tanks to the pan bowl. This kit contains all components necessary for simple fitting by hand - no tools are required and fully illustrated instructions are included to aid you during installation.
Specifications:
Plate Length: 170mm
Plate Hole Diameter: 48mm
Plate Material: Stainless Steel

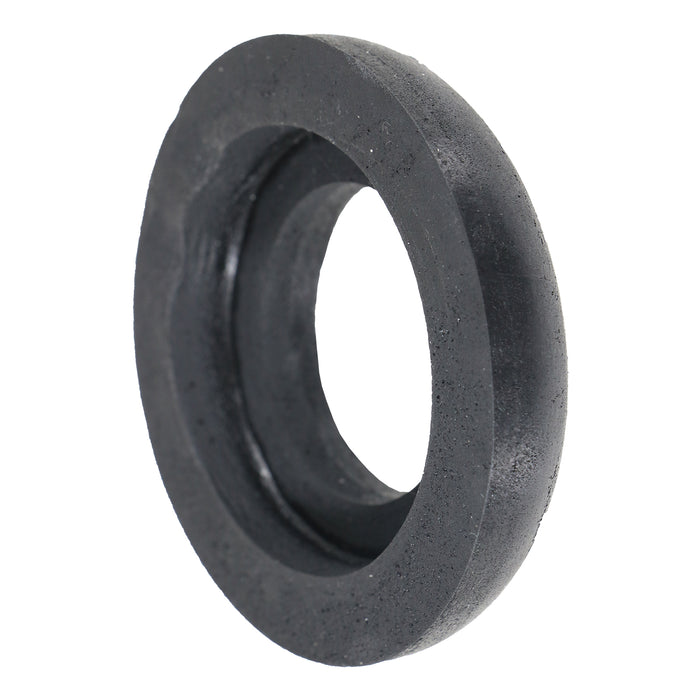

Doughnut Washer Diameter: 80mm
Doughnut Washer Hole Diameter: 40mm
Bolt Size: M8
Bolt Length: 60mm

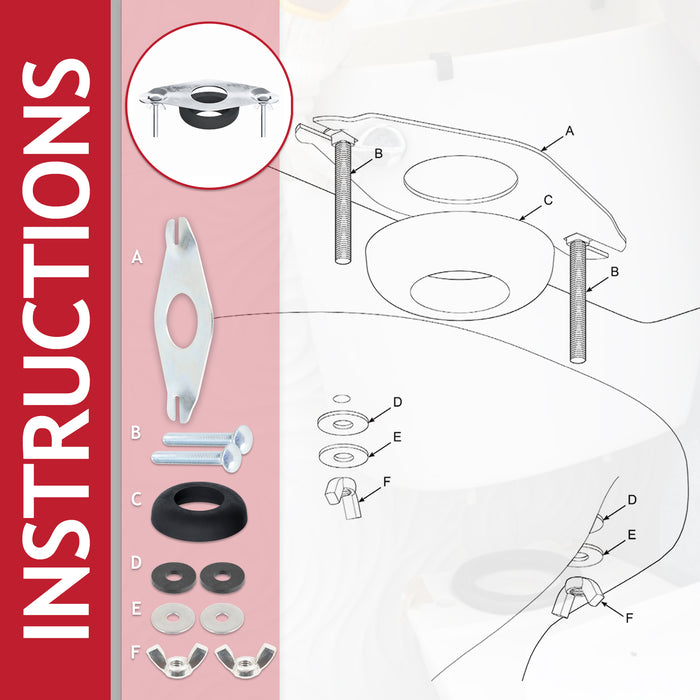

Installation Instructions:
***Please see images for corresponding lettered items***
1. Check and familiarise yourself with all the components.
2. Take plate (A) and place it over the cisterns outlet thread. Once this is in position, use the locking nut for the outlet (not supplied in this kit), to tighten the plate into position - ensuring you do not over tighten and the plate cut outs remains horizontal to the cistern front throughout.

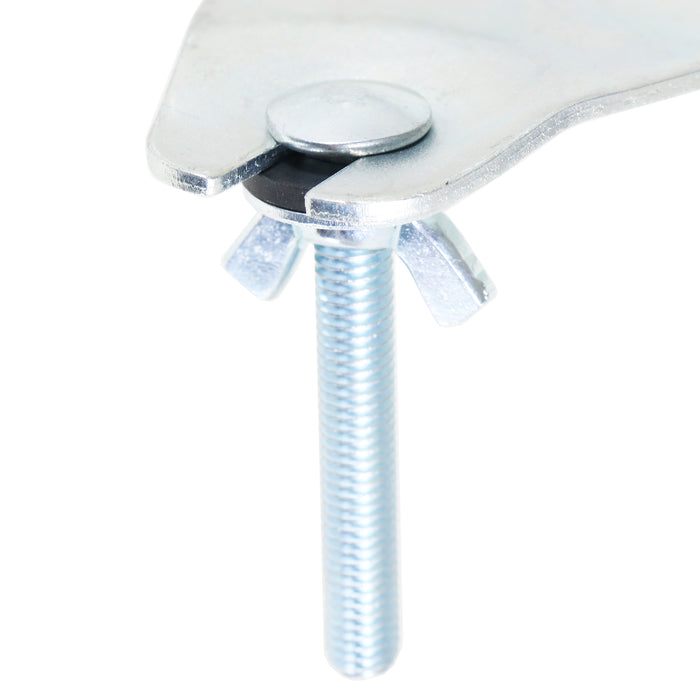

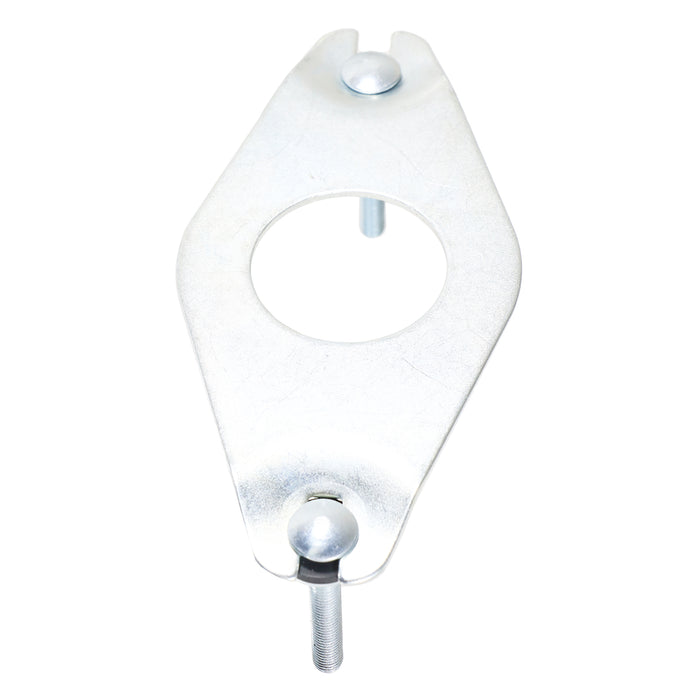

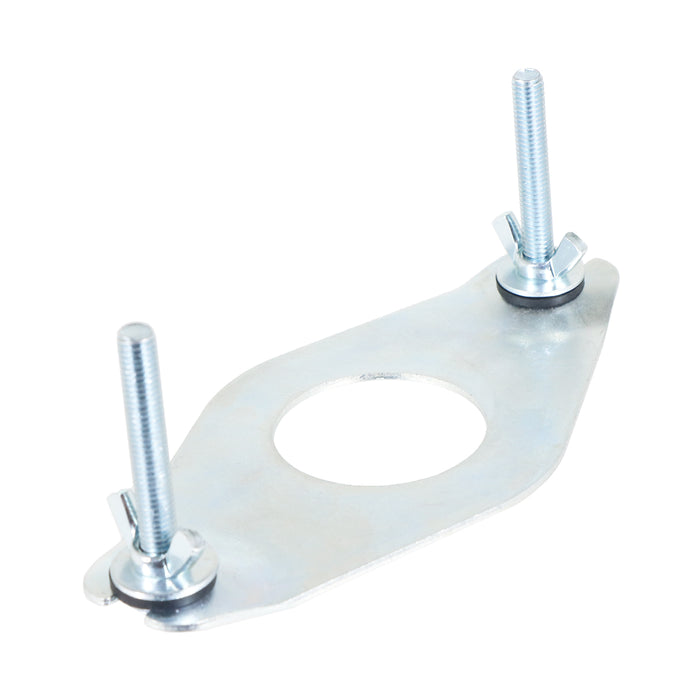

3. Take bolts (B) and insert them into plate (A) cut outs.
4. Take doughnut washer (C) and place it over the outlet thread, tight up against plate (A).
5. The cistern can now be positioned over the W.C. pan, take care lowering the cistern ensuring bolts (B) fit through their designated holes.
6. Take washers (D+E) and place them over the bolts, using wing nuts (F) to hold them onto the bolt. It is advised to do one at a time at this stage.
7. Now the washers and wing nuts are in place, tighten them up. This will pull the cistern into place and compress the doughnut washer - creating the seal between the cistern and the W.C. pan. Take care not to over tighten.
8. Once all other connections have been made, check the operation and ensure there are no leaks.
